DOOSAN M0609

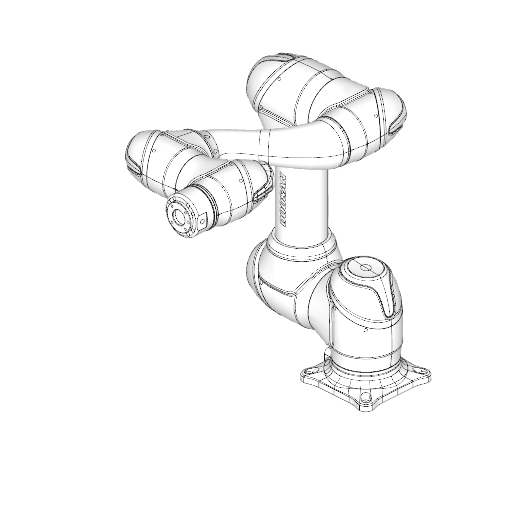

Cobot DOOSAN M0609

Specifications

Type

Cobot

Brand

Doosan

Model

M0609

Axes

6

Payload

6 kg

Reach

900 mm

Repeatability

0.030 mm

Weight

27 kg

Speed at rated payload

1000 mm/s

IP rating

IP54

Mounting orientation

Any orientation

Controller

Doosan Controller & Teach Pendant

Power supply

DC 24V / Max. 3A

Power consumption

370 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

ISO 13849-1 PL d, IEC 62061 SIL 2, ISO TS 15066, ISO 10218-1

Safety functions

Safety-Rated Stop, Emergency Stop, Safety Rated Monitoring, Safety Rated I/O, meeting Category 3 PL d, SIL 2

Communication interfaces

Digital I/O (controller & flange), Modbus RTU / Modbus TCP/IP, EtherNet/IP, PROFINET

Download DOOSAN M0609 digital twin

Start for free
The Cobot DOOSAN M0609 is a highly versatile 6-axis robotic arm designed for industrial automation applications. With a payload capacity of 6 kg and a reach of 900 mm, this lightweight 27 kg robot delivers exceptional performance, achieving maximum speeds of 1000 mm/s with a repeatability of 0.030 mm. Featuring an IP54 rating, it is suited for various environments and offers robust safety functions, certified to meet ISO and IEC standards, ensuring safe operation in automated processes.
3D View

What are the technology applications of M0609?

DOOSAN M0609 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOOSAN M0609:Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

DOOSAN M0609 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm performs welding on a metal plate in a work environment.

Welding

Frequently asked questions

Can DOOSAN M0609 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOOSAN M0609 or request a quote, please contact the manufacturer or an authorized local supplier.
