DOOSAN M1509

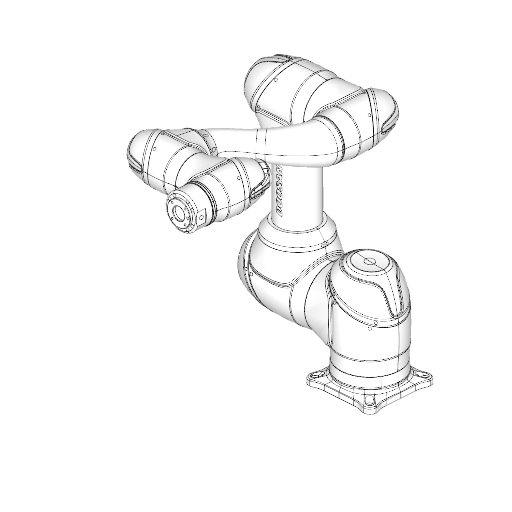

Cobot DOOSAN M1509

Specifications

Type

Cobot

Brand

Doosan

Model

M1509

Axes

6

Payload

15 kg

Reach

900 mm

Repeatability

0.030 mm

Weight

32 kg

Speed at rated payload

1 m/s

IP rating

IP54

Mounting orientation

Any orientation

Controller

Doosan Controller & Teach Pendant

Power supply

DC 24V / Max. 3A

Power consumption

390 W

Tool flange

Digital I/O - X1: IN-3ch / OUT-3ch; X2: IN-3ch / OUT-3ch; Connector 1424229 female (PHOENIX)

Certifications

CE, ISO 10218-1, ISO/TS 15066, NRTL (U.S.), KC (Korea)

Safety functions

Safety-rated stop, monitoring function, interface function; collision detection via torque sensors on all six joints; conforms to ISO 13849-1 Category 3 / PL d, IEC 62061 SIL 2

Communication interfaces

Ethernet (TCP/IP), USB, RS-232, Digital I/O, GPIO; Fieldbus: Modbus TCP/RTU

Download DOOSAN M1509 digital twin

The Cobot DOOSAN M1509 is a versatile 6-axis robotic arm designed for industrial automation, capable of handling payloads up to 15 kg with a reach of 900 mm. With a repeatability precision of 0.030 mm and a maximum speed of 1 m/s, this 32 kg robot is suitable for a wide range of applications and can be mounted in any orientation. It features robust safety functions, complies with ISO standards, and provides various communication interfaces, making it an ideal choice for modern manufacturing environments.

What are the technology applications of M1509?

DOOSAN M1509 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOOSAN M1509:Assembly, Machine Tending, Pick and place, Robot welding, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
