Industrial Robot EFORT GR6100-3800 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Efort

Model

GR6100-3800

Axes

Payload

10 kg

Reach

3750 mm

Repeatability

0.5 mm

Weight

920 kg

Maximum speed

720 °/s

Speed at rated payload

1500 mm/s

IP rating

Robot IP65, Cabinet IP54

Mounting orientation

Floor, Ceiling, Upside-down

Controller

M-type control cabinet

Power supply

AC 380V (±10%), 3-phase

Power consumption

5 kVA

Tool flange

Lemma-3R wrist mounting interface

Certifications

CE, ATEX, ISO

Safety functions

EN ISO 13849 PLd

Communication interfaces

TCP/IP, ProfiBus Slave, ProfiNet Slave

The Industrial Robot EFORT GR6100-3800 is a versatile automation solution equipped with six axes, capable of handling payloads up to 10 kg and reaching a maximum distance of 3750 mm. With a precision repeatability of 0.5 mm and a rapid speed of 720 °/s, this robot is designed for efficient performance in various environments, boasting an IP65 rating for the robot and IP54 for the control cabinet. The M-type control cabinet supports AC 380V power supply and includes comprehensive safety functions, making it an ideal choice for advanced industrial applications.

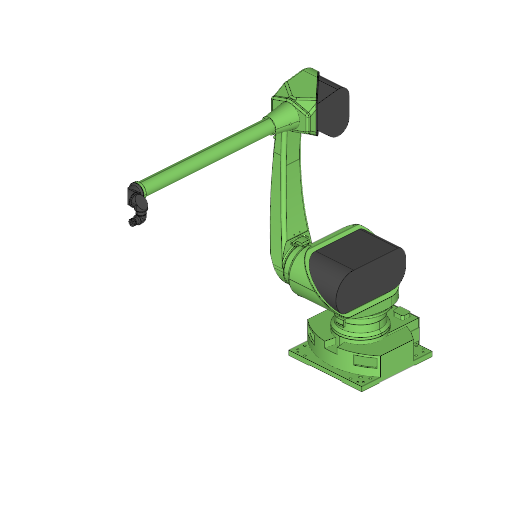

3D View

What are the technology applications of GR6100-3800?

EFORT GR6100-3800 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EFORT GR6100-3800: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
