Industrial Robot FANUC CRX-10iA Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

CRX-10iA

Axes

Payload

10 kg

Reach

1249 mm

Repeatability

0.050 mm

Weight

40 kg

Maximum speed

2000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP67

Mounting orientation

Floor, Angle, Upside-down/Ceiling

Controller

R-30iB Mini Plus

Power supply

Single-phase AC 100-120V or AC 200-240V

Power consumption

300 W

Certifications

CE Marking (EN ISO 10218-1, EN ISO 13849-1), ISO/TS 15066, UL 1740, CAN/CSA Z434

Safety functions

Safety rated contact stop / force/torque detection; Dual-Check Safety (optional); Position/Speed Check; Safe I/O connect; Emergency Stop; Collaborative robot safety function (Cat.3 PL d, or Cat.4 PL e where applicable)

Communication interfaces

Ethernet (2 ports, 10/100 Base-T), GigE Vision camera port, CoaX Vision port, RS-232 / HDI, I/O via digital/analog/Safety I/O, USB 2.0, I/O Link

The FANUC CRX-10iA is a highly versatile industrial robot featuring six axes and designed for a payload of up to 10 kg. With a reach of 1249 mm and a repeatability of 0.050 mm, it operates at maximum speeds of 2000 mm/s and 1000 mm/s at rated payload, making it ideal for a range of automation tasks. Certified with IP67 for dust and water resistance, this robot can be mounted in various orientations and is equipped with the R-30iB Mini Plus controller, offering advanced safety functions and multiple communication interfaces for seamless integration into your production line.

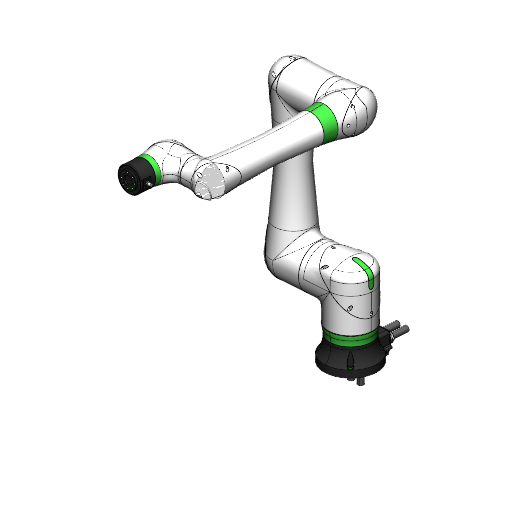

3D View

What are the technology applications of CRX-10iA?

FANUC CRX-10iA is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC CRX-10iA: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC CRX-10iA applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC CRX-10iA or request a quote, please contact the manufacturer or an authorized local supplier.
