FANUC M-710iC-50

Industrial Robot FANUC M-710iC-50
Specifications
Type
Industrial Robot
Brand
Fanuc
Model
M-710iC-50
Axes
6
Payload
50 kg
Reach
1360 mm
Repeatability
0.070 mm
Weight
545 kg
Maximum speed
355 °/s
Speed at rated payload
355 °/s
IP rating
IP67 (wrist), IP54 (body)
Mounting orientation
Floor, Inverted (Upside-Down), Angle (Wall/Ceiling)
Controller
R-30iA / R-30iB / R-30iB Mate (Plus)
Power supply
3-phase, model dependent, 200-480 V
Power consumption
2500 W
Certifications
CE (Machinery Directive), EN/ISO 10218-1, EN/60204-1, EN/ISO 13849-1, UL 1740, NRTL, CAN/CSA Z434
Safety functions
Emergency Stop, Deadman Switch, Dual Check Safety (DCS), Position/Speed Check, Safe I/O Connect, Stop Types: Power-Off Stop, Controlled Stop, Smooth E-Stop
Communication interfaces
Ethernet/IP (incl. Safety), standard robot I/O, host communication via Ethernet, possibly other industrial fieldbuses

The FANUC M-710iC-50 is a high-performance 6-axis industrial robot designed for a payload capacity of 50 kg and a reach of 1360 mm. With a repeatability of 0.070 mm and a maximum speed of 355 °/s, this robust robot excels in precision tasks while supporting various mounting orientations including floor, inverted, and angled installations. Featuring an IP67 rating for the wrist and IP54 for the body, along with advanced safety functions, the M-710iC-50 is ideal for demanding automation applications across diverse industrial environments.

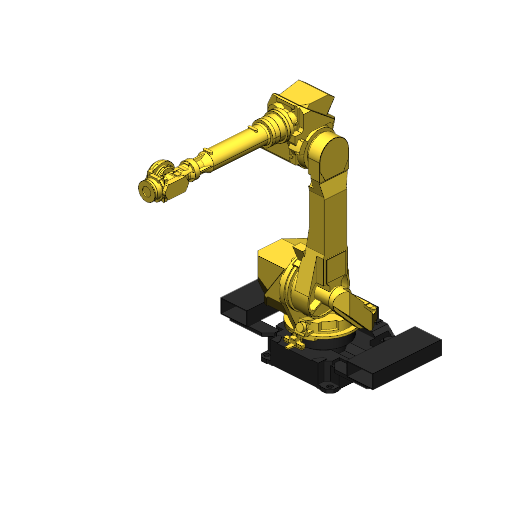

3D View

What are the technology applications of M-710iC-50?

FANUC M-710iC-50 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-710iC-50: Deburring, Machine Tending, Multiaxis cutting, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
