Industrial Robot FANUC R-2000iB-210F Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

R-2000iB-210F

Axes

Payload

210 kg

Reach

2655 mm

Repeatability

0.300 mm

Weight

1240 kg

Maximum speed

95 °/s (J1), others up to 190°/s (J6)

Speed at rated payload

95 °/s (J1 at 210 kg)

IP rating

IP54 (robot body), IP67 (wrist)

Mounting orientation

Floor

Controller

R-30iA / R-30iB (also R-J3iC in some configurations)

Power supply

3-phase AC 380-415/440-500V, 50/60Hz

Power consumption

12 kVA

Certifications

CE, ISO 10218-1 (assumed), UL

Safety functions

Dual Check Safety (DCS), Collision Guard

Communication interfaces

Ethernet, Profibus, DeviceNet, Profinet, optional EtherCAT etc.

The FANUC R-2000iB-210F is a cutting-edge industrial robot designed for high-performance automation tasks. Featuring six axes, this versatile robot offers a payload capacity of 210 kg and an impressive reach of 2655 mm, making it ideal for diverse applications. With a repeatability of 0.300 mm and operating speeds of up to 190°/s on selected joints, the R-2000iB-210F combines precision and power, ensuring efficient operations in demanding environments while adhering to stringent safety standards.

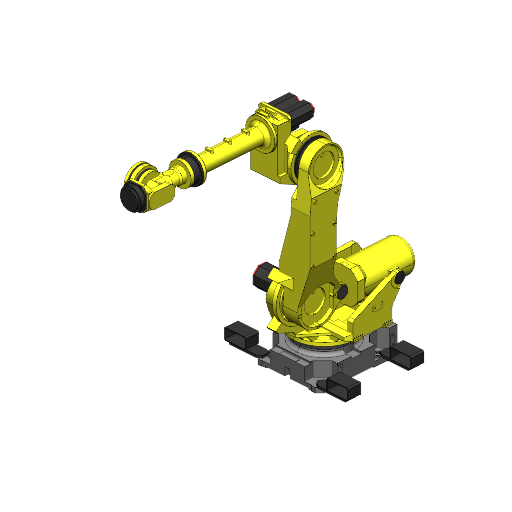

3D View

What are the technology applications of R-2000iB-210F?

FANUC R-2000iB-210F is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC R-2000iB-210F: Deburring, Machine Tending, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
