HANS E05L-Pro

Cobot

Hans6 axesDigital twin for ENCY Robot

About

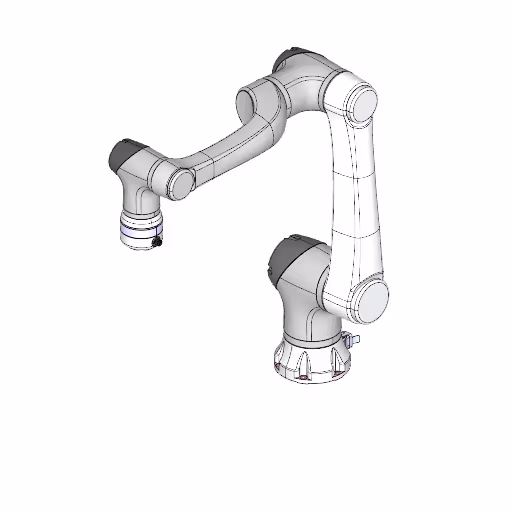

The Cobot HANS E05L-Pro is a versatile 6-axis industrial automation component that offers a payload capacity of 3.5 kg and a reach of 950 mm. With its impressive repeatability of 0.02 mm and maximum speed of 3 m/s, this robot is designed to meet high-performance demands in various applications. It features an IP66 rating for dust and water resistance, along with multiple mounting orientations, making it suitable for a wide range of installation environments.

What are the technology applications of E05L-Pro?

HANS E05L-Pro is a versatile robot suitable for a wide range of industrial applications. Primary applications of HANS E05L-Pro: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

HANS E05L-Pro applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase HANS E05L-Pro or request a quote, please contact the manufacturer or an authorized local supplier.

Download HANS E05L-Pro digital twin

Start for free

Specifications

General

Type: Cobot
Brand: Hans
Model: E05L-Pro
Axes: 6

Performance

Payload: 3.5 kg
Reach: 950 mm
Repeatability: 0.02 mm
Weight: 26 kg
Maximum speed: 3 m/s
Speed at rated payload: 3 m/s

Environment

IP rating: IP66
Mounting orientation: Floor, Wall, Ceiling, Any angle/tilt possible

Integration

Controller: Standard Control Box (compatible with Han’s Robot Elfin-Pro series); also Mini Control Box optional
Power supply: AC 110-240V, 50/60Hz
Power consumption: 180 W
Communication interfaces: TCP/IP; ModbusTCP; Profinet (optional); Ethernet/IP (optional)
Safety functions: Built-in safety I/O, emergency stop, safety collision stop, joint position limits, safety light curtain stop; each safety I/O redundant channels; safety functions conforming to EN ISO 13849-1 Performance Level d
Certifications: Complies with ISO 10218; EN ISO 13849-1; IEC 60204; IEC 60947-5-5; certifications for explosion-proof variants when applicable
