Cobot HANS E10-Pro Specs and Applications

Specifications

Type

Cobot

Brand

Hans

Model

E10-Pro

Axes

Payload

10 kg

Reach

1000 mm

Repeatability

0.03 mm

Weight

43 kg

Maximum speed

2 m/s

Speed at rated payload

2 m/s

IP rating

IP66

Mounting orientation

Any angle (floor, wall, ceiling, etc.)

Controller

Proprietary Elfin-PRO controller / Standard control box with 1000 Hz real-time force control

Power supply

200-240V AC, 50-60Hz (100-240V AC optional)

Power consumption

350 W

Safety functions

10 advanced safety configuration functions including collaborative operation and protective stop on resistance

Communication interfaces

TCP/IP, ModbusTCP, Profinet (optional), Ethernet/IP (optional)

The Cobot HANS E10-Pro is a versatile 6-axis collaborative robot designed for efficient industrial automation tasks. With a payload capacity of 10 kg and a reach of 1000 mm, it ensures exceptional precision with a repeatability of 0.03 mm at a maximum speed of 2 m/s. Built to withstand various environments, the HANS E10-Pro features an IP66 rating, can be mounted at any angle, and operates using the proprietary Elfin-PRO controller for advanced real-time force control.

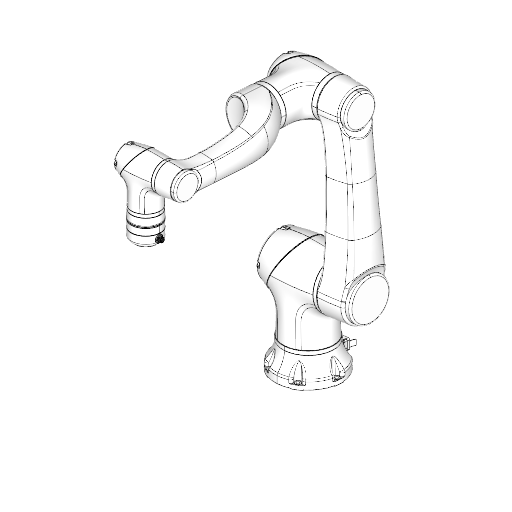

3D View

What are the technology applications of E10-Pro?

HANS E10-Pro is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HANS E10-Pro: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

HANS E10-Pro applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase HANS E10-Pro or request a quote, please contact the manufacturer or an authorized local supplier.
