INOVANCE 01741041-WXSTEP_B00（IR-R10-140S-INT-3D）-EN

Specifications

Type

Industrial Robot

Brand

INOVANCE

Model

01741041-WXSTEP_B00（IR-R10-140S-INT-3D）-EN

Axes

Payload

10 kg

Reach

1422 mm

Repeatability

0.05 mm

Weight

130 kg

Speed at rated payload

2000 mm/s

IP rating

IP65 (body), Wrist IP67 (optional)

Mounting orientation

Floor (also possible Wall or Ceiling dependent on installation)

Controller

IRCB501

Power supply

AC 200-240V, 50/60Hz

Power consumption

0.6 kW

Tool flange

Base mounting flange: 290mm × 280mm (4 × Φ18mm holes)

Certifications

CE, cSGSus, KCs, Kc

Safety functions

Functional safety (with expansion card) including emergency stop, collision prevention, safety protection range

Communication interfaces

EtherCAT master/slave, Ethernet/IP slave, PROFINET slave, CANopen master, TCP/IP custom protocol, Modbus TCP master/slave, MC bus, IR-LINK

Download INOVANCE 01741041-WXSTEP_B00（IR-R10-140S-INT-3D）-EN digital twin

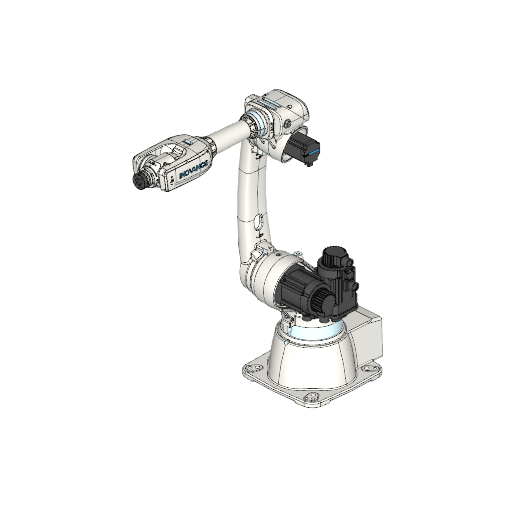

The Industrial Robot INOVANCE 01741041-WXSTEP_B00 (IR-R10-140S-INT-3D) is a highly versatile automation solution featuring six axes and a payload capacity of 10 kg. With an impressive reach of 1422 mm and a repeatability of 0.05 mm, this robot can achieve maximum speeds of 10500 mm/s and 2000 mm/s at rated payload. Built for durability and flexibility, it is rated IP65 with optional IP67 wrist protection and can be mounted on the floor, wall, or ceiling, making it ideal for various industrial applications.

What are the technology applications of 01741041-WXSTEP_B00（IR-R10-140S-INT-3D）-EN?

INOVANCE 01741041-WXSTEP_B00（IR-R10-140S-INT-3D）-EN is a versatile robot suitable for a wide range of industrial applications.

Primary applications of INOVANCE 01741041-WXSTEP_B00（IR-R10-140S-INT-3D）-EN:. But we recommend to consult with your robot supplied or the manufacturer.
