JAKA A 20

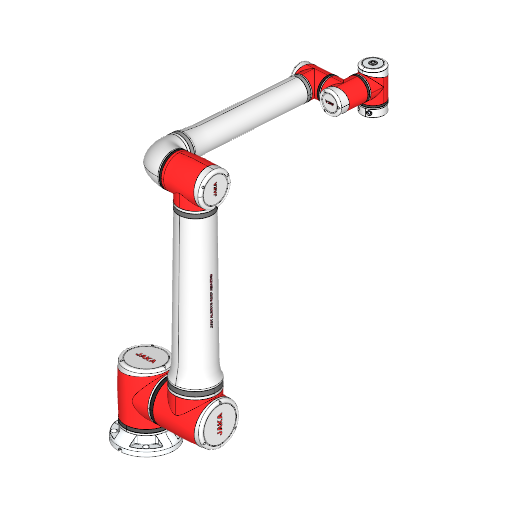

Cobot JAKA A 20

Specifications

Type

Cobot

Brand

Jaka

Model

A 20

Axes

6

Payload

20 kg

Reach

1780 mm

Repeatability

0.05 mm

Weight

68 kg

Speed at rated payload

1500 mm/s

IP rating

IP65 (arm), IP44 (controller cabinet)

Mounting orientation

Any orientation

Controller

JAKA Zu Series controller

Power supply

100-240 VAC, 50-60 Hz

Power consumption

750 W

Certifications

CE, CR, GB 11291.1-2011, ISO 15066

Safety functions

Emergency stop; Safeguard stop; Motion status functions; Hand-guided mode; Speed monitoring; Torque & power limitation; Collision protection; Position monitoring (28 safety functions, software version 1.7.1+) compliant with EN ISO 10218-1, ISO 13849-1

Communication interfaces

TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP

Download JAKA A 20 digital twin

Start for free
The Cobot JAKA A 20 is a versatile 6-axis robotic arm designed for industrial automation applications, offering a payload capacity of 20 kg and a reach of 1780 mm. With remarkable repeatability of 0.05 mm and maximum speeds reaching 1500 mm/s, it ensures precision and efficiency. This reliable cobot features an IP65 rating for the arm and IP44 for the controller, making it suitable for various environments, while its comprehensive safety functions and compatibility with multiple communication interfaces guarantee seamless integration into modern automated systems.
3D View

What are the technology applications of A 20?

JAKA A 20 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of JAKA A 20:Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
