Industrial Robot KAWASAKI BX100N Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

BX100N

Axes

Payload

100 kg

Reach

2200 mm

Repeatability

0.200 mm

Weight

740 kg

Maximum speed

300 °/s

IP rating

Wrist: IP67, Base/Basics axes: IP54–IP65 (depending on region/base)

Mounting orientation

Floor

Controller

F02 or E02

Power supply

3-phase 380-415 VAC ±10%, 50/60 Hz, Power requirements ~7.5 kVA

Power consumption

7500 VA

Certifications

Meets ISO 13849-1 PL e / IEC 61508 SIL 3

Safety functions

Safety Circuit: Category 4, Performance Level e (EN ISO 13849-1:2008)

Communication interfaces

Controller data interfaces: 2× Ethernet, 1× USB, 1× RS-232C; fieldbus support (various)

The KAWASAKI BX100N is a versatile 6-axis industrial robot designed for high-performance automation tasks in various environments. With a payload capacity of 100 kg and a reach of 2200 mm, it boasts impressive repeatability of 0.200 mm and a maximum speed of 300 °/s. Specifically engineered for floor mounting, this robot is compliant with strict safety standards, featuring a robust safety circuit and multiple communication interfaces, making it an ideal choice for complex industrial applications.

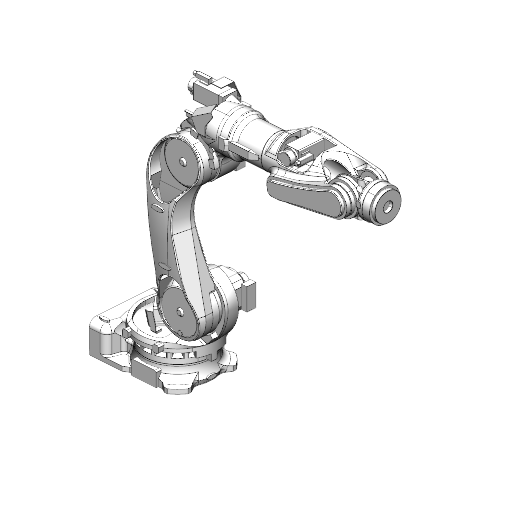

3D View

What are the technology applications of BX100N?

KAWASAKI BX100N is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI BX100N: Assembly, Machine Tending, Pick and place, Robot welding, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
