Industrial Robot KAWASAKI MC004N-B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

MC004N-B

Axes

Payload

4 kg

Reach

505.8 mm

Repeatability

0.05 mm

Weight

25 kg

Maximum speed

700 °/s (at JT4 axis wrist swivel)

IP rating

Wrist: IP67 / Base: IP65

Mounting orientation

Floor, Ceiling

Controller

F60

Power supply

AC 200-240 V ±10 %, 50/60 Hz, single phase, max. 1.5 kVA

Certifications

Cleanroom class

ISO Class 5

Safety functions

Safety Category 3, Performance Level d (EN ISO13849-1:2008)

Communication interfaces

2×RS-232C, 2×Ethernet; optional Fieldbus: DeviceNet, PROFIBUS, PROFINET, INTERBUS-S, Ethernet/IP, CC-Link, CANopen, Modbus TCP

The Industrial Robot KAWASAKI MC004N-B is a high-performance automation solution designed for precision and reliability in various applications. Featuring six axes and a payload capacity of 4 kg, this robot offers a reach of 505.8 mm with a repeatability of 0.05 mm, making it ideal for intricate tasks. With a maximum speed of 700 °/s and dual communication interfaces, the MC004N-B is suitable for cleanroom environments classified as ISO Class 5 and is compliant with stringent safety standards.

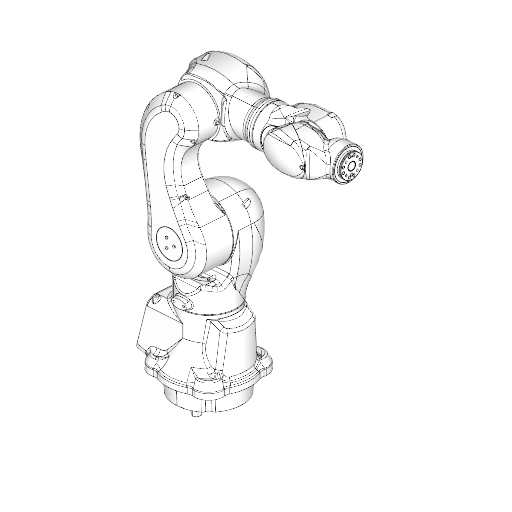

3D View

What are the technology applications of MC004N-B?

KAWASAKI MC004N-B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI MC004N-B: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KAWASAKI MC004N-B applications programmed with ENCY Robot

Pick and place
