Industrial Robot KAWASAKI RS020N-A001 v2 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

RS020N-A001 v2

Axes

Payload

20 kg

Reach

1725 mm

Repeatability

0.04 mm

Weight

230 kg

Maximum speed

11500 mm/s

Speed at rated payload

11500 mm/s

IP rating

Wrist IP67 / Base Axes IP65

Mounting orientation

Floor, Ceiling

Controller

E01

Power supply

AC200-230V ±10%, 50/60Hz

Power consumption

5.6 kVA

The Industrial Robot KAWASAKI RS020N-A001 v2 is a highly capable 6-axis robotic solution, designed to handle payloads of up to 20 kg with a remarkable reach of 1725 mm. Featuring impressive repeatability of 0.04 mm and a maximum speed of 11500 mm/s, this robot is suitable for a variety of industrial applications. It is IP67 rated for the wrist and IP65 for the base axes, allowing for versatile installation options on either the floor or ceiling, and operates with a powerful E01 controller on a standard AC200-230V power supply.

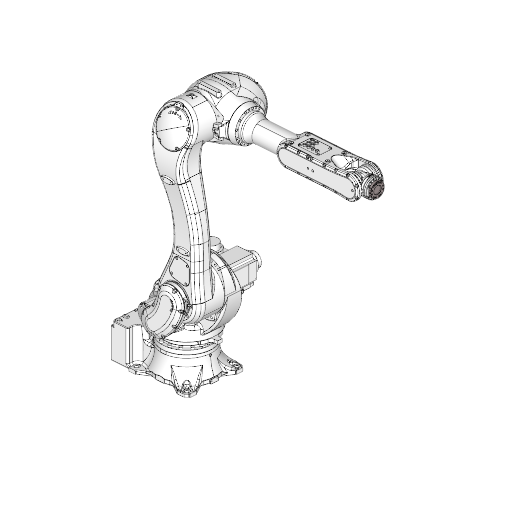

3D View

What are the technology applications of RS020N-A001 v2?

KAWASAKI RS020N-A001 v2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI RS020N-A001 v2: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KAWASAKI RS020N-A001 v2 applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KAWASAKI RS020N-A001 v2 or request a quote, please contact the manufacturer or an authorized local supplier.
