Cobot KUKA iiwa 14 R820 – Basic flange Specs and Applications

Specifications

Type

Cobot

Brand

Kuka

Model

iiwa 14 R820 - Basic flange

Axes

Payload

14 kg

Reach

820 mm

Repeatability

0.15 mm

Weight

29.9 kg

Maximum speed

135 °/s

Speed at rated payload

85 °/s

IP rating

IP54

Operating temperature

5 to 45 °C

Mounting orientation

Floor, Ceiling, Wall

Controller

KUKA Sunrise Cabinet

Power supply

AC 110-230 V, 50/60 Hz

Tool flange

DIN ISO 9409-1-A50-7-M6

Certifications

Category 3, Performance Level d (EN ISO 13849-1)

Cleanroom class

cleanroom version available (designation CR) but class not specified

Safety functions

Joint-torque sensors in all 7 axes; immediate contact detection; speed reduction on contact; full stop on unexpected collision

Communication interfaces

USB, Ethernet, DVI-I

The Cobot KUKA iiwa 14 R820 - Basic flange is a high-precision industrial automation component designed for flexible applications, featuring 7 axes with a payload capacity of 14 kg and a reach of 820 mm. With a repeatability of 0.15 mm and a maximum speed of 135 °/s, this cobot offers reliable performance in various mounting orientations including floor, ceiling, and wall. Equipped with advanced safety functions and a KUKA Sunrise Cabinet controller, it excels in demanding environments while ensuring optimal communication through USB and Ethernet interfaces.

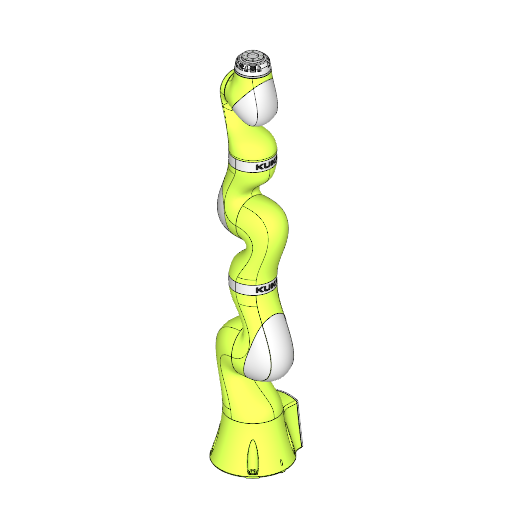

3D View

What are the technology applications of iiwa 14 R820 - Basic flange?

KUKA iiwa 14 R820 – Basic flange is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA iiwa 14 R820 – Basic flange: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA iiwa 14 R820 – Basic flange applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA iiwa 14 R820 – Basic flange or request a quote, please contact the manufacturer or an authorized local supplier.

Other Cobot by Kuka

Details

KUKA iiwa 14 R820 – MF IO Valve pneumatic

Details

KUKA iiwa 14 R820 – MF electric

Details

KUKA iiwa 14 R820 – MF Inside electric

Details

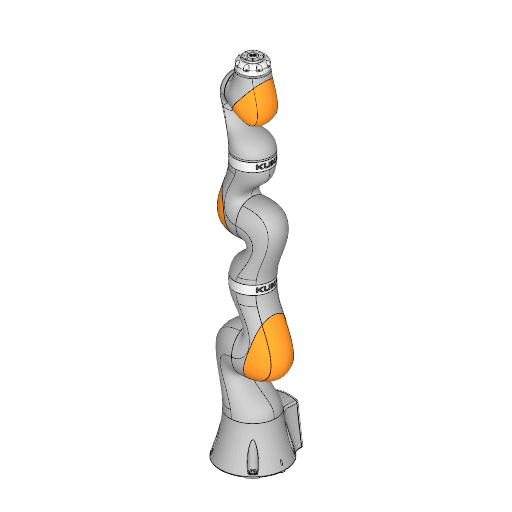

KUKA iiwa 14 R820 – MF Inside pneumatic
