Industrial Robot KUKA KR 10 R1100 sixx Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 10 R1100 sixx

Axes

Payload

10 kg

Reach

1101 mm

Repeatability

0.030 mm

Weight

54 kg

Maximum speed

492 °/s

Speed at rated payload

492 °/s

IP rating

IP54

Operating temperature

5 to 45 °C

Mounting orientation

Floor, Wall, Ceiling

Controller

KR C4 compact (also KR C4 smallsize-2)

Power supply

1 × 230 V, 50-60 Hz

Communication interfaces

Ethernet, (optional: Profinet when configured), general controller Ethernet interface

The KUKA KR 10 R1100 sixx is a versatile industrial robot featuring six axes, capable of handling a maximum payload of 10 kg and offering an impressive reach of 1101 mm. With a repeatability of 0.030 mm and a maximum speed of 492 °/s, this robot is designed for precision and efficiency in various applications. It operates within an ambient temperature range of 5 to 45 °C and supports multiple mounting orientations, making it ideal for integration in diverse industrial environments.

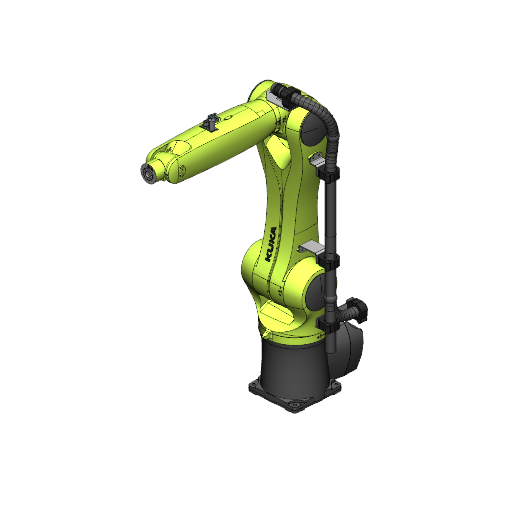

3D View

What are the technology applications of KR 10 R1100 sixx?

KUKA KR 10 R1100 sixx is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 10 R1100 sixx: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 10 R1100 sixx applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 10 R1100 sixx or request a quote, please contact the manufacturer or an authorized local supplier.
