KUKA KR 1000 L750 titan

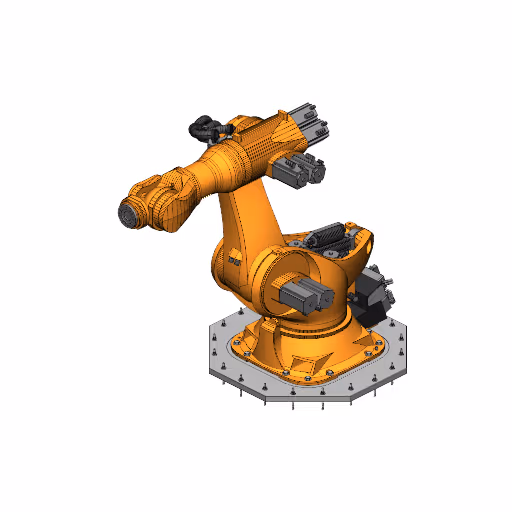

Industrial Robot KUKA KR 1000 L750 titan

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 1000 L750 titan

Axes

6

Payload

750 kg

Reach

3202 mm

Repeatability

0.200 mm

Weight

4740 kg

Speed at rated payload

{"J1":58,"J2":50,"J3":50,"J4":60,"J5":60,"J6":72} °/s

IP rating

Robot body IP65; in-line wrist IP65 (standard), IP67 (foundry variant)

Operating temperature range

10 to +55 °C (operation); −40 to +60 °C (storage/transportation)

Mounting orientation

Floor

Controller

KR C5 (also KR C4 in some versions)

Power supply

400-480 VAC, 3-phase

Tool flange

In-line wrist type ZH 750; hole circle 200 mm, screw size M16, 16 threads, inner locating diameter Ø160 H7

Certifications

Compliant with IEC 60529; ambient conditions class 3K3; EN ISO 10218-1; protection rating standards

Safety functions

Stop Category 1 (drives deactivated after braking: ~680 ms in T1, ~1.5 s in other modes); Stop Category 2 braking without drive deactivation

Communication interfaces

Ethernet, real-time communication between control processes; data cable connections HAN3A; external axes interface A1/A3/A6

Download KUKA KR 1000 L750 titan digital twin

Start for free
The KUKA KR 1000 L750 titan is a highly advanced industrial robot designed for optimal performance in demanding automation tasks. Featuring six axes, this robust robot has a payload capacity of 750 kg and an impressive reach of 3202 mm, allowing for versatile applications in various industries. With a repeatability of 0.200 mm and a maximum speed of 72 °/s, the KR 1000 L750 titan is equipped with industry-leading safety functions, making it a reliable choice for environments with strict operational requirements.
3D View

What are the technology applications of KR 1000 L750 titan?

KUKA KR 1000 L750 titan is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 1000 L750 titan:Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

KUKA KR 1000 L750 titan applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

Frequently asked questions

Can KUKA KR 1000 L750 titan be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 1000 L750 titan or request a quote, please contact the manufacturer or an authorized local supplier.
