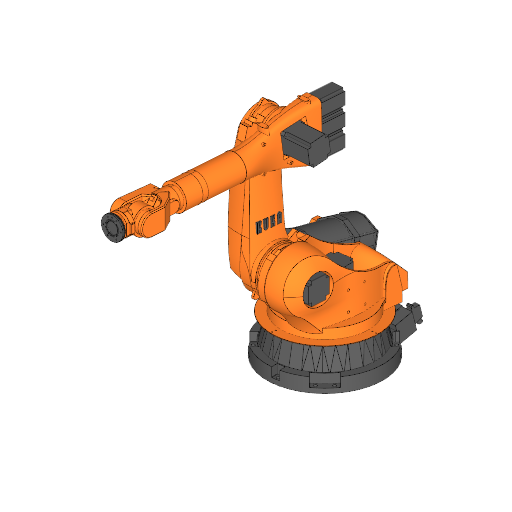

Industrial Robot KUKA KR 140 L100 comp Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 140 L100 comp

Axes

Payload

100 kg

Reach

2800 mm

Repeatability

0.15 mm

Weight

1170 kg

Maximum speed

241 °/s

Speed at rated payload

100 °/s

IP rating

IP 65

Operating temperature

+10 to +55 °C

Mounting orientation

Floor

Controller

KR C2 edition 2005

Power consumption

20.4 kW

Tool flange

DIN ISO 9409-1 A160

Certifications

The Industrial Robot KUKA KR 140 L100 comp is a highly versatile automation solution featuring six axes and a maximum payload capacity of 100 kg. With an impressive reach of 2800 mm and a repeatability of 0.15 mm, this robot is ideal for precision tasks in rigorous environments, operating efficiently within a temperature range of +10 to +55 °C. Its robust design, combined with an IP 65 rating and a powerful KR C2 controller, ensures reliable performance in demanding industrial applications.

3D View

What are the technology applications of KR 140 L100 comp?

KUKA KR 140 L100 comp is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 140 L100 comp: Machine Tending, Pick and place, Robot welding, Spraying. But we recommend to consult with your robot supplier or the manufacturer.
