Industrial Robot KUKA KR 140 L120 comp Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 140 L120 comp

Axes

Payload

120 kg

Reach

2600 mm

Repeatability

0.15 mm

Weight

1165 kg

Maximum speed

241 °/s

Speed at rated payload

100 °/s

IP rating

IP65

Operating temperature

+10 to +55 °C

Mounting orientation

Floor

Controller

KR C2 (Edition 2005)

Power consumption

20.4 kW

Tool flange

DIN ISO 9409-1-A160

The KUKA KR 140 L120 comp is a highly efficient industrial robot designed for versatile automation applications. With six axes, a payload capacity of 120 kg, and a reach of 2600 mm, this robust robot excels in tasks requiring precision, boasting a repeatability of 0.15 mm. Built to operate within an IP65 rating and a temperature range of +10 to +55 °C, the KUKA KR 140 L120 comp is suitable for a variety of industrial environments while offering a maximum speed of 241 °/s and a speed of 100 °/s at rated payload.

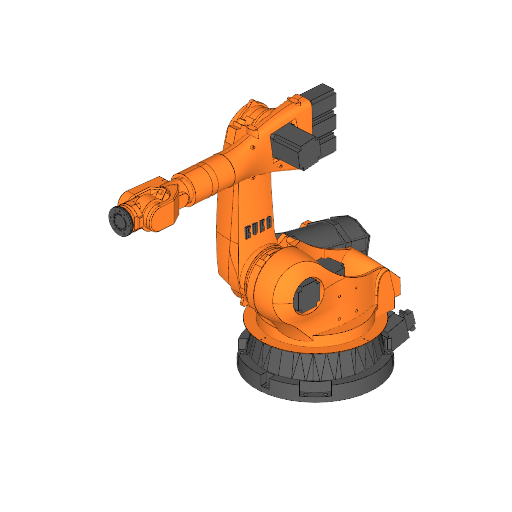

3D View

What are the technology applications of KR 140 L120 comp?

KUKA KR 140 L120 comp is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 140 L120 comp: Assembly, Machine Tending, Pick and place, Robot welding, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
