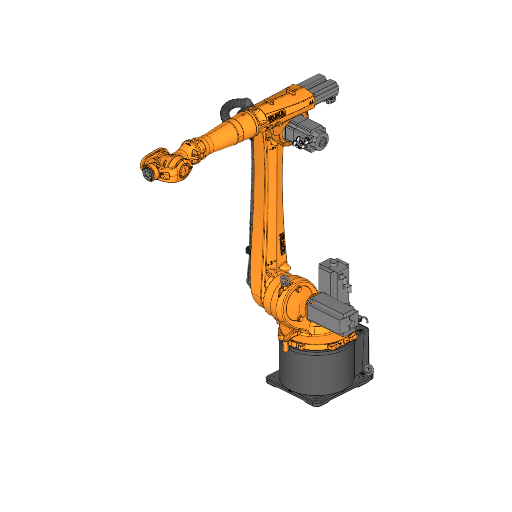

Industrial Robot KUKA KR 8 R2010 (slim version) Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 8 R2010 (slim version)

Axes

Payload

16 kg

Reach

2013 mm

Repeatability

0.040 mm

Weight

255 kg

Maximum speed

630 °/s

Speed at rated payload

630 °/s

IP rating

IP65

Operating temperature

5 to 55 °C

Mounting orientation

Floor, Ceiling, Wall, Any Angle

Controller

KR C4

Tool flange

ISO 9409-1-50-4-M6

Certifications

CE, NRTL, CR

Cleanroom class

ISO Class 5 (option), ISO Class 4 (option)

The KUKA KR 8 R2010 is a versatile industrial robot designed for a wide range of automation tasks, boasting six axes and a payload capacity of 16 kg. With a reach of 2013 mm and exceptional repeatability of 0.040 mm, this slim version robot features a maximum speed of 630 °/s, making it ideal for high-speed applications. Its robust design with an IP65 rating allows for flexible installation in various orientations including floor, ceiling, and wall, ensuring reliable performance within an operating temperature range of 5 to 55 °C.

3D View

What are the technology applications of KR 8 R2010 (slim version)?

KUKA KR 8 R2010 (slim version) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 8 R2010 (slim version): Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 8 R2010 (slim version) applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 8 R2010 (slim version) or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Kuka

Details

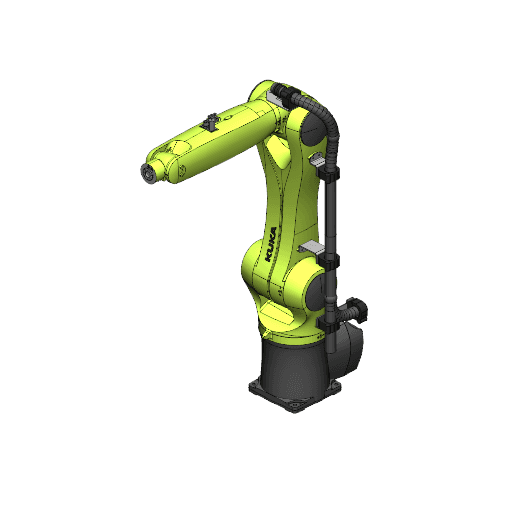

KUKA KR 10 R1100 sixx

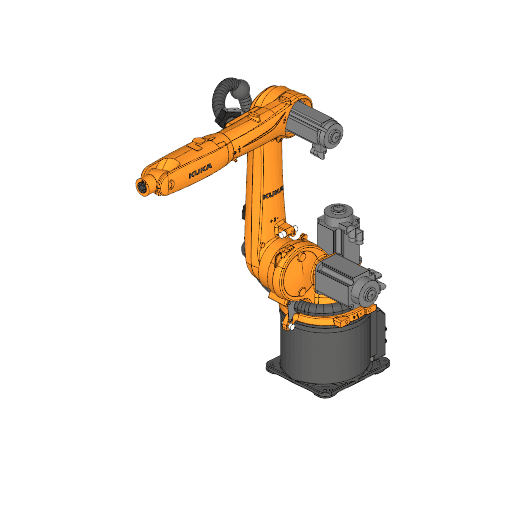

KUKA KR 10 R1420 (slim version)
