MOTOMAN GP600

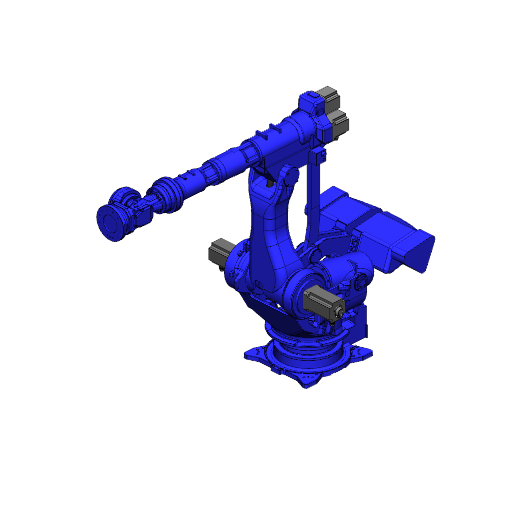

Heavy-Duty Industrial Robot MOTOMAN GP600

Specifications

Type

Heavy-Duty Industrial Robot

Brand

Motoman

Model

GP600

Axes

7

Payload

600 kg

Reach

2942 mm

Repeatability

0.100 mm

Weight

3035 kg

Speed at rated payload

82 °/s (S-L-U axes at 600 kg)

IP rating

IP65-67 wrist; IP54 body

Mounting orientation

Floor

Controller

YRC1000

Power supply

7 kVA

Power consumption

7 kVA

Certifications

CE

Safety functions

PL d Category 3 Functional Safety Unit (FSU)

Communication interfaces

EtherNet/IP via LAN2, Ethernet TCP/IP, LAN3 (FTP, maintenance), LAN1 reserved for Pendant

Download MOTOMAN GP600 digital twin

Start for free
The Heavy-Duty Industrial Robot MOTOMAN GP600 is designed for robust performance in demanding industrial applications, featuring a 7-axis configuration that allows for a payload capacity of 600 kg and a reach of 2942 mm. With exceptional repeatability of 0.100 mm and a maximum speed of 162 °/s, this robot is optimized for efficiency, even at rated payloads with speeds reaching 82 °/s. Equipped with the YRC1000 controller and versatile communication interfaces, including EtherNet/IP, the MOTOMAN GP600 is an essential component for automation solutions requiring reliability and precision.
3D View

What are the technology applications of GP600?

MOTOMAN GP600 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN GP600:Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.
