Cobot OMRON RT6-4011301 Specs and Applications

Specifications

Type

Cobot

Brand

OMRON

Model

RT6-4011301

Axes

Payload

20 kg

Reach

1300 mm

Repeatability

0.1 mm

Weight

33 kg

Maximum speed

4 m/s

Speed at rated payload

1.3 m/s

IP rating

IP54 (robot arm)

Mounting orientation

Wall, Table, Ceiling

Controller

OMRON TM Series Control Box / Robot Controller (Part of TM20 / TM20X bundle)

Power supply

100 to 240 VAC, 50/60 Hz

Certifications

ISO 10218-1, ISO/TS 15066, UL; also performance & safety according to EN ISO 13849-1 Level d, SIL 2

Cleanroom class

ISO Class 3

Safety functions

Performance level according to EN ISO 13849-1: Level d; SIL according to IEC 61508: SIL 2

Communication interfaces

RS-232, Ethernet (master), Modbus TCP/RTU (master & slave), PROFINET (optional), EtherNet/IP (optional)

The OMRON RT6-4011301 is a versatile 6-axis collaborative robot (cobot) designed for industrial automation with a payload capacity of 20 kg and a reach of 1300 mm. This compact and efficient robot arm, weighing 33 kg, features a maximum speed of 4 m/s and ensures high precision with a repeatability of 0.1 mm, making it suitable for various applications. With IP54 protection, multiple mounting options, and advanced safety features compliant with international standards, the RT6-4011301 is ideal for cleanroom environments classified as ISO Class 3.

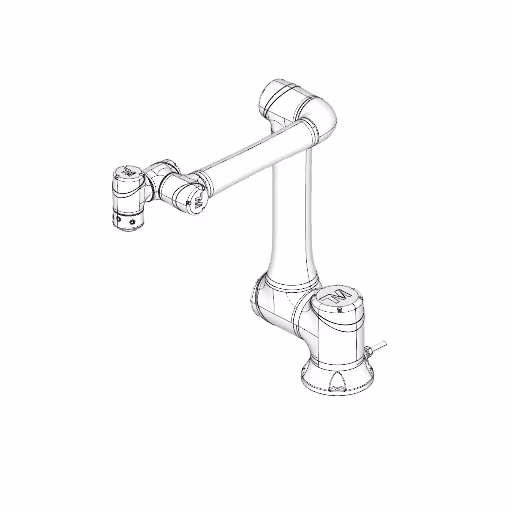

3D View

What are the technology applications of RT6-4011301?

OMRON RT6-4011301 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of OMRON RT6-4011301: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
