Cobot SIASUN GCR10-1300 Specs and Applications

Specifications

Type

Cobot

Brand

Siasun

Model

GCR10-1300

Axes

Payload

10 kg

Reach

1300 mm

Repeatability

0.050 mm

Weight

38 kg

Maximum speed

3.8 m/s

Speed at rated payload

1.5 m/s

IP rating

IP54 / IP65

Operating temperature

-10 to 50 °C

Mounting orientation

Any direction (floor-mounted, ceiling-mounted)

Controller

DC15S control cabinet

Power supply

200-240 VAC, 47-63 Hz, 10A

Power consumption

400 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent to ISO 9409-1)

Certifications

Functional safety by TŰV SÜD, first through IEC 61508 certification, conventional collision detection, force & power detection

Safety functions

Emergency stop (ES), Protective stop, Safe Operating Stop (SOS), Joint Safe Limited Position (SLP), Joint Safe Limited Speed (SLS), TCP position limit; Stop Categories SS0, SS1, SS2

Communication interfaces

TCP/LP, Modbus/TCP, Profinet, Ethernet/LP, CAN, RS485, EtherCAT, incremental encoder signal (A+/A- A-; B+/B-; Z+/Z-)

The Cobot SIASUN GCR10-1300 is a versatile 6-axis industrial robot designed for a payload capacity of 10 kg and an impressive reach of 1300 mm. With a repeatability of 0.050 mm and a maximum speed of 3.8 m/s, it excels in precision tasks while operating effectively in various mounting orientations. Equipped with robust safety features and extensive communication interfaces, this cobot ensures reliable performance from -10 to 50 °C, making it an ideal fit for diverse automation applications.

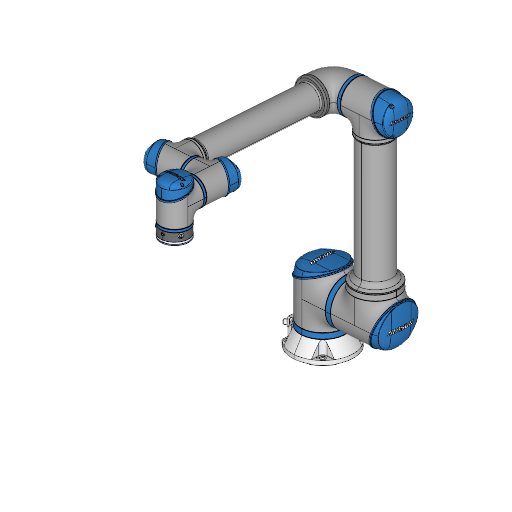

3D View

What are the technology applications of GCR10-1300?

SIASUN GCR10-1300 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of SIASUN GCR10-1300: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
