Industrial Robot STAUBLI TX200 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

TX200

Axes

Payload

100 kg

Reach

2000 mm

Repeatability

0.060 mm

Weight

1000 kg

Maximum speed

12 m/s

Speed at rated payload

12 m/s

IP rating

IP65 (wrist), optional IP67 (wrist)

Operating temperature

+5 to +40 °C

Mounting orientation

Floor-mounted / Ceiling-mounted

Controller

Stäubli CS8 series, CS8C HP

Power consumption

4600 W

Tool flange

100 mm PCD, compatible with MPS 130 / 900 Nm robotic tool changer

Certifications

Designed in accordance with EN ISO 10218-1/2 machine safety, CE marking, meets SIL 3 / PL e safety category

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Optional SIL 3 / PL e safety functionalities; Safe speed, Safe stop, Safe tool, Safe zone

Communication interfaces

Standard socket (19-contact), Ethernet option, M12 code D for Cat5e Ethernet; Controller supports EtherCAT, EtherNet/IP, Profinet, Sercos III, Modbus TCP/IP, Profibus DP, CC-Link, OPC UA etc.

The STAUBLI TX200 is a high-performance industrial robot featuring six axes with a remarkable payload capacity of 100 kg and a reach of 2000 mm. Engineered for precision, it offers a repeatability of 0.060 mm and operates at a maximum speed of 12 m/s, ensuring efficient automation in various applications. Designed for floor or ceiling mounting, the robot operates within an extensive temperature range of +5 to +40 °C and comes with robust safety features compliant with SIL 3 and PL e standards, making it an ideal choice for demanding industrial environments.

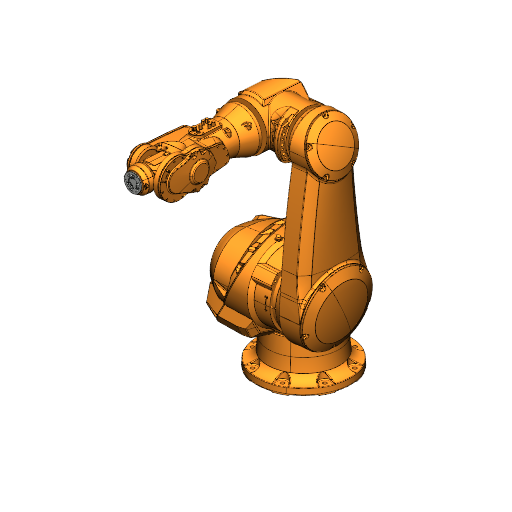

3D View

What are the technology applications of TX200?

STAUBLI TX200 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI TX200: Deburring, Machine Tending, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.
