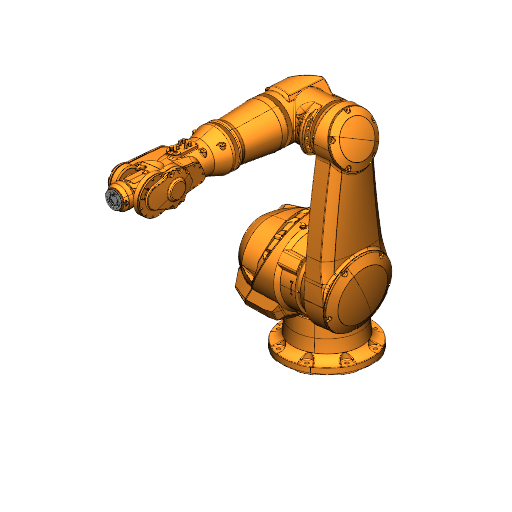

Industrial Robot STAUBLI TX200L Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

TX200L

Axes

Payload

60 kg

Reach

2400 mm

Repeatability

0.100 mm

Weight

1020 kg

Maximum speed

14 m/s

Speed at rated payload

14 m/s

IP rating

IP65 (wrist), optional IP67

Operating temperature

5 to 40 °C

Mounting orientation

Floor-mounted or Ceiling-mounted

Controller

Stäubli CS8C HP

Power supply

AC 400 V

Power consumption

4.6 kVA

Tool flange

ISO 9409-1-100-6-M8

Certifications

ISO 10218-1, CE, UL

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Optional SIL 3 / PL e safety functionalities

Communication interfaces

Fieldbus, Ethernet, Modbus, Ethernet/IP etc.

The STAUBLI TX200L is a high-performance industrial robot designed for versatility and precision in automation tasks. With six axes, a payload capacity of 60 kg, and an impressive reach of 2400 mm, it ensures superior repeatability of 0.100 mm at maximum speeds of 14 m/s. This robust robot, weighing 1020 kg, can operate in a temperature range of 5 to 40 °C and is available with IP65 or optional IP67 ratings, making it suitable for various environments, including cleanrooms classified to ISO 14644-1 Class 5. Its advanced Stäubli CS8C HP controller and multiple communication interfaces ensure seamless integration into existing systems, while the option for SIL 3 / PL e safety features enhances operational safety.

3D View

What are the technology applications of TX200L?

STAUBLI TX200L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI TX200L: Deburring, Grinding, Multiaxis cutting, Polishing, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

STAUBLI TX200L applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase STAUBLI TX200L or request a quote, please contact the manufacturer or an authorized local supplier.
