Cobot UNIVERSAL UR3 Specs and Applications

Specifications

Type

Cobot

Brand

Universal

Model

UR3

Axes

Payload

3 kg

Reach

500 mm

Repeatability

0.100 mm

Weight

11 kg

Maximum speed

1000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP54

Mounting orientation

Any orientation

Controller

CB3

Power supply

100-240 VAC, 50-60 Hz

Power consumption

100 W

Tool flange

Unlimited rotation of tool flange; joint ranges ±360° on other joints

Certifications

ISO 14644-1 (cleanroom), EN ISO 13849-1 PLd, EN ISO 10218-1, CE

Cleanroom class

Robot Arm: ISO Class 5; Control Box: ISO Class 6

Safety functions

Power and force limiting; Emergency Stop; Safeguard Stop; Reduced Mode; Recovery Mode; performance level PLd Category 3

Communication interfaces

TCP/IP Ethernet (Modbus TCP, PROFINET, Ethernet/IP adapter), Digital I/O, Analog I/O

The Cobot UNIVERSAL UR3 is a versatile industrial automation component designed for precision and efficiency, featuring six axes and a payload capacity of 3 kg. With a reach of 500 mm and a repeatability of 0.100 mm, this collaborative robot operates at a maximum speed of 1000 mm/s, making it ideal for a variety of applications. Built to withstand diverse conditions, it carries an IP54 rating and is compatible with multiple communication interfaces, ensuring seamless integration into any automation environment.

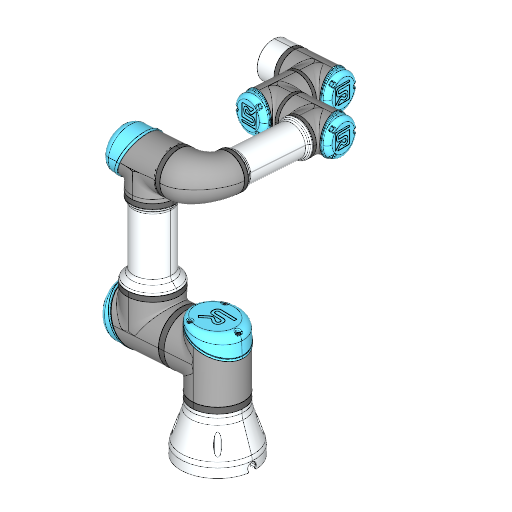

3D View

What are the technology applications of UR3?

UNIVERSAL UR3 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of UNIVERSAL UR3: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

UNIVERSAL UR3 applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase UNIVERSAL UR3 or request a quote, please contact the manufacturer or an authorized local supplier.
