Industrial Robot FANUC CRX 10iA Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

CRX 10iA

Axes

Payload

10 kg

Reach

1249 mm

Repeatability

0.050 mm

Weight

40 kg

Maximum speed

2000 mm/s

Speed at rated payload

2000 mm/s

IP rating

IP67

Operating temperature

0-45 °C

Mounting orientation

Floor, Inverted (angle), Ceiling

Controller

R-30iB Mini Plus

Power supply

AC 200-240 V, single phase

Certifications

CE; ISO-10218-1 safety standard; IP67 protection class

Safety functions

Rated force/torque detection for collaborative operation; compliant with ISO-10218-1

Communication interfaces

Ethernet, GigE Vision, RS-485, Analogue I/O, Digital I/O, Conveyor tracking, Fieldbus (e.g. Profinet optional board)

The FANUC CRX 10iA is a versatile industrial robot designed to enhance automation processes with its six axes and a payload capacity of 10 kg. With a reach of 1249 mm and a repeatability of 0.050 mm, this robot operates at a maximum speed of 2000 mm/s, making it ideal for high-speed applications. It features a robust R-30iB Mini Plus controller, operates within a temperature range of 0-45 °C, and complies with safety standards, including ISO-10218-1, ensuring reliable performance in various environments.

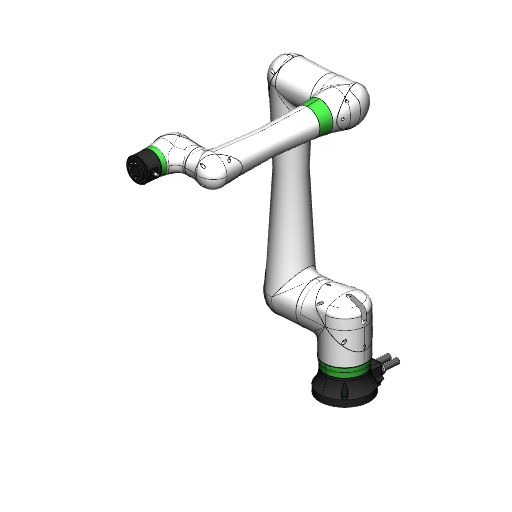

3D View

What are the technology applications of CRX 10iA?

FANUC CRX 10iA is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC CRX 10iA: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
