Industrial Robot FANUC R-2000iB-175L Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

R-2000iB-175L

Axes

Payload

175 kg

Reach

2852 mm

Repeatability

0.300 mm

Weight

1260 kg

Maximum speed

190 °/s

Speed at rated payload

190 °/s

IP rating

IP54 (body) / IP67 (wrist & forearm standard)

Mounting orientation

Floor mount

Controller

R-30iA or R-30iB

Power supply

AC 200-230V or 380-575V, 50/60Hz, 3-phase

Power consumption

2.5 kW

Tool flange

ISO standard wrist flange (same pattern as R-2000iA series)

Certifications

CE; ISO 10218-1/2; UL/CSA (where applicable)

Safety functions

Collision detection; safety rated stop inputs; mechanical installation and controller-based protection functions

Communication interfaces

Ethernet, fieldbus options (EtherNet/IP, Profinet, etc.)

The FANUC R-2000iB-175L is a high-performance industrial robot designed for demanding automation tasks, featuring six axes and a remarkable payload capacity of 175 kg. With a reach of 2852 mm and a repeatability of 0.300 mm, this robot excels in precision and efficiency, while its IP54 body and IP67 wrist and forearm standard provide robust protection in various environments. Compatible with R-30iA and R-30iB controllers, the robot supports multiple communication interfaces like Ethernet and fieldbus options, ensuring seamless integration into industrial automation systems.

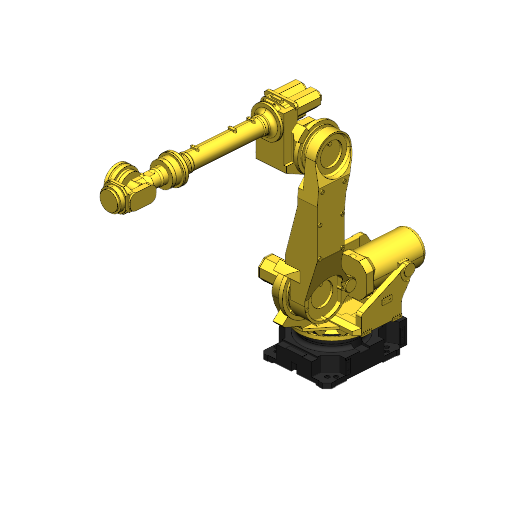

3D View

What are the technology applications of R-2000iB-175L?

FANUC R-2000iB-175L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC R-2000iB-175L: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
