KUKA KR 300 R2700-2 HC II

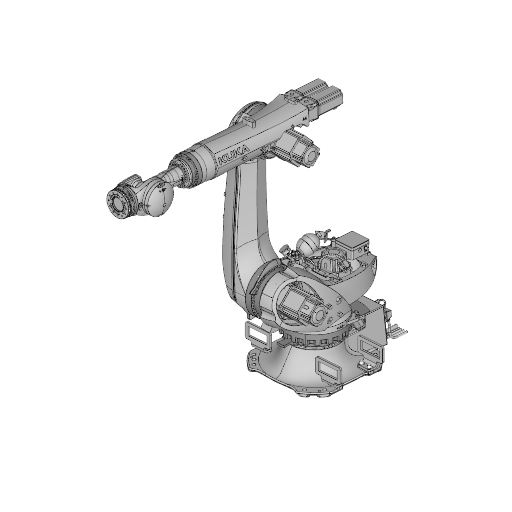

Industrial Robot KUKA KR 300 R2700-2 HC II

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 300 R2700-2 HC II

Axes

6

Payload

300 kg

Reach

2701 mm

Repeatability

0.05 mm

Weight

1105 kg

Speed at rated payload

105 °/s

IP rating

IP65 (wrist optionally IP67)

Mounting orientation

Floor, Ceiling, Wall, Desired angle

Controller

KR C5 (also compatible with KR C4 in some variants)

Certifications

ISO 13849: PL d category 3; IEC 62061 SIL 2 (based on IEC 61508); Machinery Directive 2006/42/EC

Cleanroom class

ISO Class 5 under 40% override and ISO Class 5 under 80% override

Safety functions

Double brakes in axes 2-5; manual recovery system; adjustable joint limits; safety zones freely definable; stop-on-fault mechanisms

Communication interfaces

Real-time communication interface; safe inputs/outputs for safety integration

Download KUKA KR 300 R2700-2 HC II digital twin

Start for free
The KUKA KR 300 R2700-2 HC II is a versatile industrial robot designed for high-performance automation tasks. Featuring six axes, it boasts a remarkable payload capacity of 300 kg and a reach of 2701 mm, making it ideal for a wide range of applications. With an impressive repeatability of 0.05 mm and various mounting orientations, this robot ensures precision and flexibility, while its robust safety features and compliance with stringent certifications like ISO 13849 and IEC 62061 enhance operational reliability and safety in demanding environments.
3D View

What are the technology applications of KR 300 R2700-2 HC II?

KUKA KR 300 R2700-2 HC II is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 300 R2700-2 HC II:. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

Frequently asked questions

Can KUKA KR 300 R2700-2 HC II be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 300 R2700-2 HC II or request a quote, please contact the manufacturer or an authorized local supplier.
