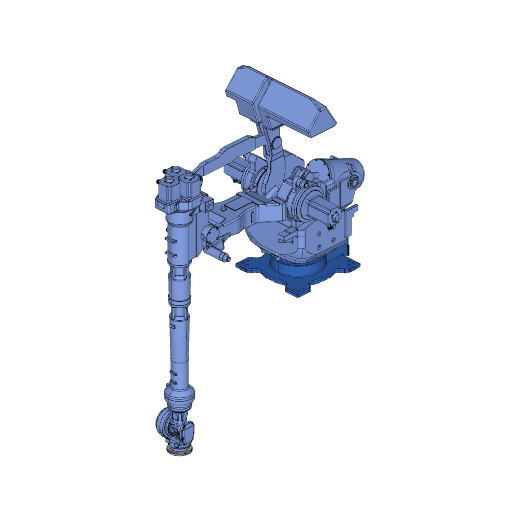

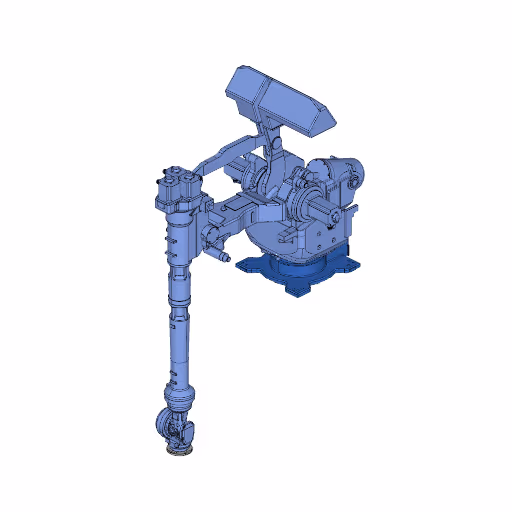

Heavy-Duty Industrial Robot MOTOMAN GP400R Specs and Applications

Specifications

Type

Heavy-Duty Industrial Robot

Brand

Motoman

Model

GP400R

Axes

Payload

400 kg

Reach

3518 mm

Repeatability

0.1 mm

Weight

3560 kg

Maximum speed

160 °/s

Speed at rated payload

80 °/s

IP rating

Body IP30; Wrist IP67 (optional body IP54 in splash-proof version)

Mounting orientation

Shelf-Mounted

Controller

YRC1000

Power supply

7.0 kVA

Power consumption

7 kVA

Safety functions

Optional Functional Safety Unit (FSU) offering a wide range of safety functions

Communication interfaces

Ethernet LAN; fieldbus cable routing through base; LAN1-LAN3 on controller

The MOTOMAN GP400R is a heavy-duty industrial robot designed for demanding automation tasks, featuring seven axes and a significant payload capacity of 400 kg. With a reach of 3518 mm and exceptional repeatability of 0.1 mm, this robot can operate at maximum speeds of 160 °/s, making it ideal for high-performance applications. Its robust design includes an IP30-rated body and optional IP67 wrist, ensuring durability in various environments, while the YRC1000 controller offers versatile communication interfaces and safety functionalities for enhanced operational efficiency.

3D View

What are the technology applications of GP400R?

MOTOMAN GP400R is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN GP400R: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MOTOMAN GP400R applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MOTOMAN GP400R or request a quote, please contact the manufacturer or an authorized local supplier.

Other Heavy-Duty Industrial Robot by Motoman

Details

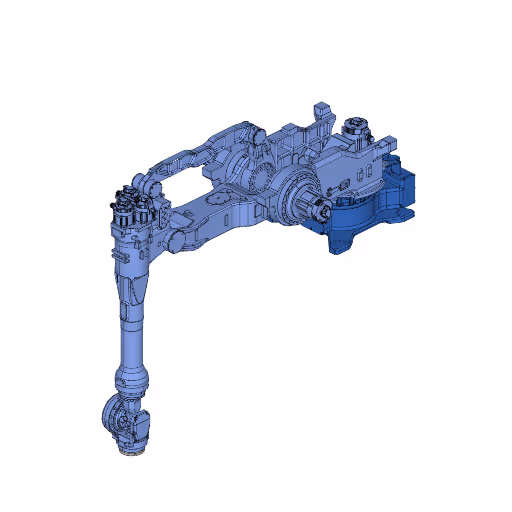

MOTOMAN GP300R
