Industrial Robot MOTOMAN MPX3500 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

MPX3500

Axes

Payload

15 kg

Reach

2700 mm

Repeatability

0.15 mm

Weight

590 kg

Maximum speed

2 m/s

Speed at rated payload

2000 mm/s

IP rating

IP54

Mounting orientation

Floor, Wall, Ceiling

Controller

DX200-FM

Power supply

3 kVA

Power consumption

3 kVA

Tool flange

Hollow wrist, inner diameter 70 mm

Certifications

Factory Mutual (FM) approval for Class I, Div. 1 hazardous environments; Category 3 Performance Level d (PLd)

Safety functions

Safety-rated speed control, safety-rated soft axis & space limiting, safety-rated monitor stop (via PLd functional safety unit)

Communication interfaces

EtherNet, EtherNet /IP, CC-Link, DeviceNet, EtherCAT, PROFINET

The Industrial Robot MOTOMAN MPX3500 is a highly versatile automation solution featuring six axes and a payload capacity of 15 kg. With a remarkable reach of 2700 mm, this robot demonstrates excellent repeatability of 0.15 mm and can operate at maximum speeds of 2 m/s, ensuring efficiency in demanding environments. Designed for multiple mounting orientations—including floor, wall, and ceiling—and equipped with advanced safety functions, the MOTOMAN MPX3500 is ideal for a variety of industrial applications while adhering to rigorous safety and communication standards.

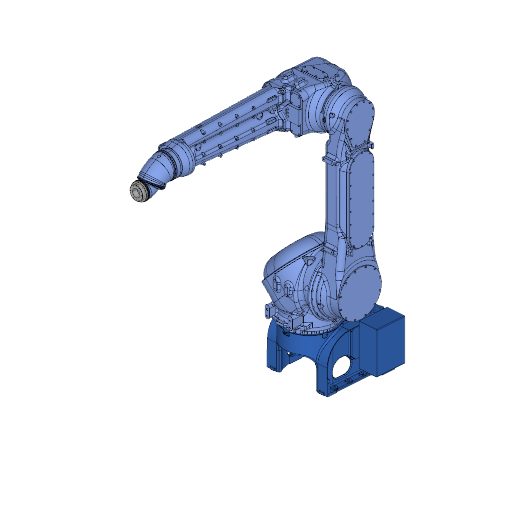

3D View

What are the technology applications of MPX3500?

MOTOMAN MPX3500 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN MPX3500: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MOTOMAN MPX3500 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MOTOMAN MPX3500 or request a quote, please contact the manufacturer or an authorized local supplier.
