Industrial Robot TURIN TR50-2440B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Turin

Model

TR50-2440B

Axes

Payload

50 kg

Reach

2448 mm

Repeatability

0.08 mm

Weight

650 kg

Maximum speed

372 °/s

Speed at rated payload

372 °/s

IP rating

IP54

Mounting orientation

Floor-standing

Controller

TRC3-C06

Power supply

Three-phase AC 380 V ±10%

Power consumption

7000 W

Certifications

Standards including EN ISO 12100; ISO 13849-1

Safety functions

Emergency stop; Safe stop; Safety protection functions per EN ISO 12100; EN ISO 13849-1

Communication interfaces

Ethernet (TCP/IP, Modbus-TCP, Ethernet/IP), MC protocol, EtherCAT, RS232, RS485, USB 2.0, IO (10 inputs NPN, 14 outputs Relay/NPN)

The Industrial Robot TURIN TR50-2440B is a highly efficient solution for diverse automation tasks, featuring six axes and a substantial payload capacity of 50 kg. With a reach of 2448 mm and a high maximum speed of 372 °/s, this robot offers precise repeatability of 0.08 mm, making it ideal for intricate applications. Designed for floor-standing installation and equipped with robust safety features and multiple communication interfaces, the TURIN TR50-2440B is perfect for manufacturing environments demanding reliability and advanced technological capabilities.

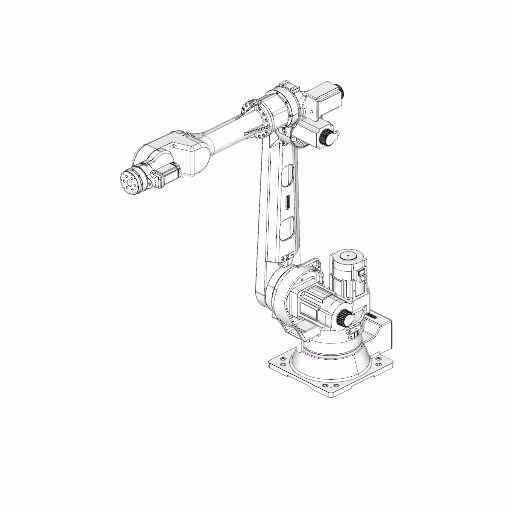

3D View

What are the technology applications of TR50-2440B?

TURIN TR50-2440B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TURIN TR50-2440B: Assembly, Machine Tending, Pick and place, Polishing, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
