Industrial Robot TURIN TR60-2110B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Turin

Model

TR60-2110B

Axes

Payload

60 kg

Reach

2119 mm

Repeatability

0.08 mm

Weight

600 kg

Maximum speed

372 °/s

Speed at rated payload

60 kg payload at full rated joint speeds

IP rating

IP54

Mounting orientation

Floor-standing

Controller

TRC3-C06

Power supply

Three-phase AC380V -10%~+10%

Power consumption

6.5 kW

Safety functions

General Mode Safety Protection Stop (GS), Automatic Mode Safety Protection Stop (AS), Master Safety Stop (SS), Emergency Stop

The Industrial Robot TURIN TR60-2110B is engineered for high-performance automation, featuring six axes that can handle a payload of up to 60 kg. With a reach of 2119 mm and a remarkable repeatability of 0.08 mm, this robust robot is capable of operating at maximum speeds of 372 °/s while maintaining precision. Designed for floor-standing installation, the TR60-2110B supports a three-phase AC380V power supply and includes advanced safety functions, ensuring reliable operation in demanding industrial environments.

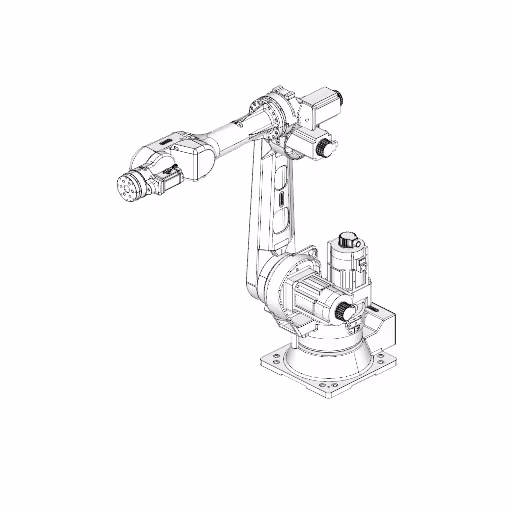

3D View

What are the technology applications of TR60-2110B?

TURIN TR60-2110B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TURIN TR60-2110B: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

TURIN TR60-2110B applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TURIN TR60-2110B or request a quote, please contact the manufacturer or an authorized local supplier.
