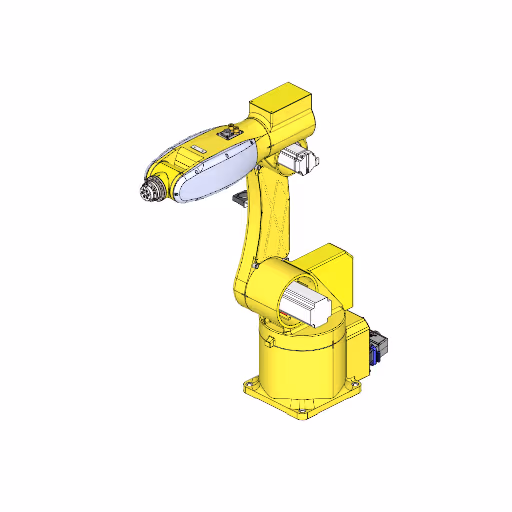

Industrial Robot TURIN TR07-960B/EC Specs and Applications

Specifications

Type

Industrial Robot

Brand

Turin

Model

TR07-960B/EC

Axes

Payload

7 kg

Reach

960 mm

Repeatability

0.04 mm

Weight

49 kg

Maximum speed

360 °/s (for joints J5 and J6)

IP rating

IP54/IP67 (5 & 6 Axes Optional)

Mounting orientation

Floor-standing

Controller

TRC4-A03

Power supply

Single-phase AC 220V ±10%

Power consumption

2.4 kW

Certifications

EN ISO 13849-1, Category 3; EN ISO 10218-1; CE

Safety functions

More than 20 adjustable safety features including collision detection, virtual wall and collaboration mode

Communication interfaces

Standard IO (NPN)/Relay; Ethernet for TCP/IP, Modbus TCP, Ethernet/IP, MC communication protocols; Expandable Modbus-TCP to RS232 and RS485 serial port server

The Industrial Robot TURIN TR07-960B/EC is a versatile 6-axis robot designed for high-precision tasks with a payload capacity of 7 kg and a reach of 960 mm. With an impressive repeatability of 0.04 mm and a maximum speed of 360 °/s for joints J5 and J6, this floor-standing robot is equipped with advanced safety features and multiple communication interfaces, ensuring seamless integration into your automation system. Designed for robust performance, it operates on a single-phase AC power supply and complies with stringent EN ISO safety standards.

3D View

What are the technology applications of TR07-960B/EC ?

TURIN TR07-960B/EC is a versatile robot suitable for a wide range of industrial applications.

Primary applications of TURIN TR07-960B/EC: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

TURIN TR07-960B/EC applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase TURIN TR07-960B/EC or request a quote, please contact the manufacturer or an authorized local supplier.
