Cobot DOOSAN A0912S Specs and Applications

Specifications

Type

Cobot

Brand

Doosan

Model

A0912S

Axes

Payload

9 kg

Reach

1200 mm

Repeatability

0.050 mm

Weight

27 kg

Maximum speed

1000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP54

Operating temperature

-5 to 45 °C

Mounting orientation

Any Orientation

Controller

Doosan Controller, DART Platform & Teach Pendant

Power supply

DC 24V / Max. 3 A

Power consumption

440 W

Tool flange

Digital I/O - X1 IN-2ch / Out-2ch; RS485 support; Connector 1424229 female (PHOENIX)

Certifications

ISO 10218, ISO/TS 15066, CE, TÜV SÜD

Safety functions

Master+ Safety (includes high-sensitivity torque sensor, collision detection algorithms, protective stop modes, safety-rated I/O, emergency stop)

Communication interfaces

Digital I/O, RS-485; Control box: USB 3.0, TCP/IP, Modbus-TCP/IP, Modbus-RTU, EtherNet/IP, PROFINET IO

Introducing the Cobot DOOSAN A0912S, a versatile six-axis robotic solution designed for industrial automation. With a payload capacity of 9 kg and an impressive reach of 1200 mm, this cobot ensures high precision with a repeatability of 0.050 mm and operates efficiently at speeds of 1000 mm/s, even at rated payload. Engineered for flexibility, the DOOSAN A0912S can be mounted in any orientation and operates seamlessly within a temperature range of -5 to 45 °C, backed by robust safety features and a comprehensive set of communication interfaces for streamlined integration.

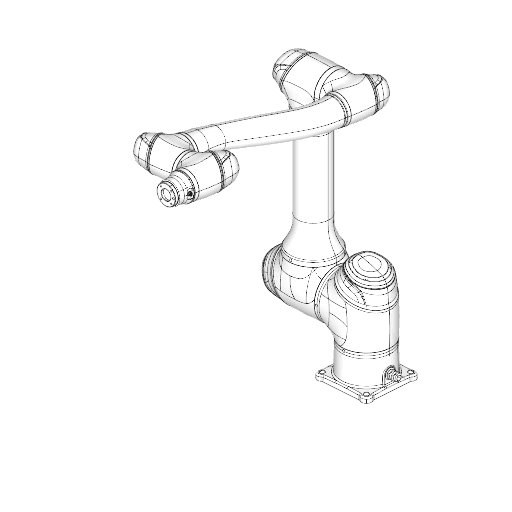

3D View

What are the technology applications of A0912S?

DOOSAN A0912S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOOSAN A0912S: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
