Industrial Robot ESTUN ER80-2565-BD Specs and Applications

Specifications

Type

Industrial Robot

Brand

ESTUN

Model

ER80-2565-BD

Axes

Payload

80 kg

Reach

2565 mm

Repeatability

0.04 mm

Weight

730 kg

Maximum speed

285 °/s (joint-6)

Speed at rated payload

108 °/s (joint-2 with 80 kg)

IP rating

IP54

Mounting orientation

floor-mounted

Controller

TRIO

Power supply

Three-phase AC 380-400V, 50/60Hz

Power consumption

7000 W

Certifications

Safety functions

Emergency stop; key switch; enable switch (three-position)

Communication interfaces

Standard: EtherCAT, Modbus TCP, TCP/IP; Optional: Profinet, Profibus, CC-Link, EtherNet/IP

The Industrial Robot ESTUN ER80-2565-BD is a highly versatile six-axis robotic solution designed for heavy payload applications, with a maximum payload capacity of 80 kg and a reach of 2565 mm. This robot ensures exceptional precision with a repeatability of 0.04 mm and operates at a maximum speed of 285 °/s in joint-6 mode, making it ideal for various industrial automation tasks. It features an IP54 rating for dust and water resistance, is floor-mounted, and integrates seamlessly with TRIO controllers while supporting multiple communication interfaces such as EtherCAT and Modbus TCP, making it a reliable choice for modern manufacturing environments.

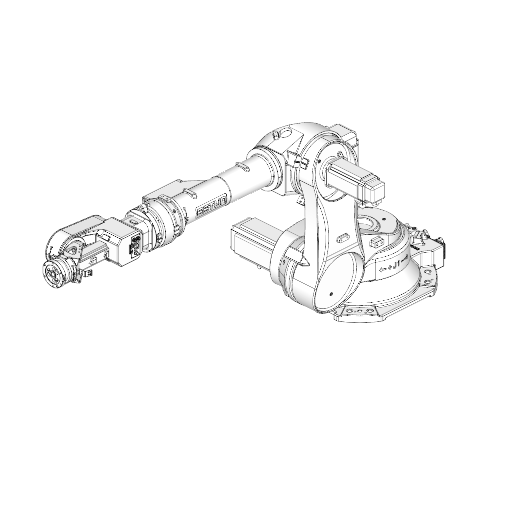

3D View

What are the technology applications of ER80-2565-BD?

ESTUN ER80-2565-BD is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ESTUN ER80-2565-BD: Machine Tending, Pick and place, Polishing, Robot welding, Spraying. But we recommend to consult with your robot supplier or the manufacturer.
