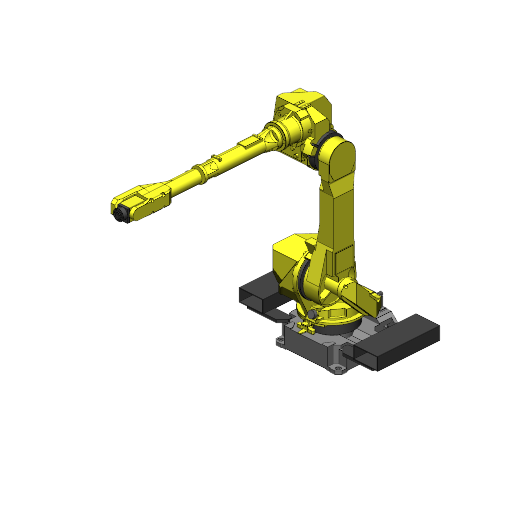

Industrial Robot FANUC M-710iC-20M Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-710iC-20M

Axes

Payload

20 kg

Reach

2582 mm

Repeatability

0.060 mm

Weight

530 kg

Maximum speed

600 °/s (J6 axis)

Speed at rated payload

175 °/s (J1/J2 at full payload)

IP rating

Body IP54 (standard) / IP67 option; Wrist & J3 arm IP67 standard

Mounting orientation

Floor, Upside Down, Angle

Controller

R-30iB Plus

Power supply

3-Phase AC, 380-575 V, 50/60 Hz

Power consumption

2.5 kW (average)

The FANUC M-710iC-20M is a state-of-the-art industrial robot designed for high-performance automation tasks with its six axes and a remarkable payload capacity of 20 kg. Featuring a reach of 2582 mm and a repeatability of 0.060 mm, this robust robot excels in precision applications, achieving a maximum speed of 600 °/s for the J6 axis. With options for various mounting orientations and an IP rating of IP54 (IP67 available), the M-710iC-20M is compatible with the R-30iB Plus controller and operates efficiently on a 3-phase AC power supply.

3D View

What are the technology applications of M-710iC-20M?

FANUC M-710iC-20M is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-710iC-20M: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC M-710iC-20M applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling
