Industrial Robot FANUC M-710iC-45M Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-710iC-45M

Axes

Payload

45 kg

Reach

2606 mm

Repeatability

0.060 mm

Weight

570 kg

Maximum speed

180 / 180 / 180 / 250 / 250 / 360 °/s (J1 / J2 / J3 / J4 / J5 / J6)

IP rating

Body IP54 (standard), Wrist and J3-arm IP67, Full-body IP67 optional

Mounting orientation

Floor, Upside-down, Angle

Controller

R-30iB Plus

Power supply

12 kVA (when matched with R-30iB/R-30iB Plus / A- or B-cabinet / R-30iB Mate variants)

The FANUC M-710iC-45M is a highly versatile industrial robot featuring six axes and a payload capacity of 45 kg, making it suitable for a variety of applications in automation. With a reach of 2606 mm and remarkable repeatability of 0.060 mm, this robot offers exceptional precision and efficiency. Its robust design, combined with an IP54 body rating and optional full-body IP67 protection, ensures reliable operation in diverse environments, while the R-30iB Plus controller enhances its performance across multiple mounting orientations.

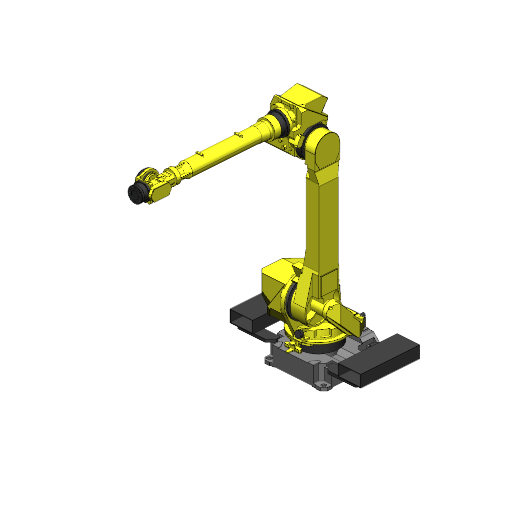

3D View

What are the technology applications of M-710iC-45M?

FANUC M-710iC-45M is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-710iC-45M: Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC M-710iC-45M applications programmed with ENCY Robot

Multiaxis cutting

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC M-710iC-45M or request a quote, please contact the manufacturer or an authorized local supplier.
