MOTOMAN HC10DTFP

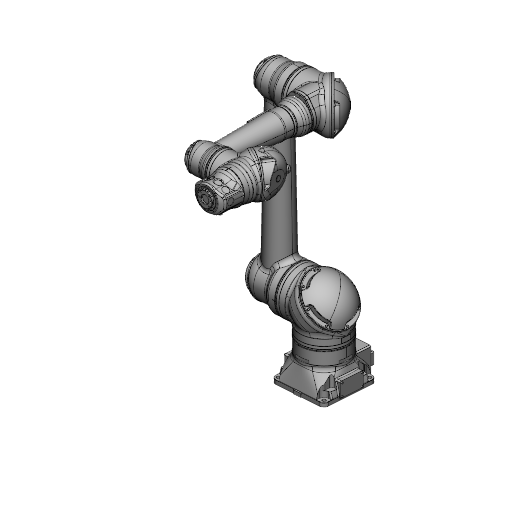

Industrial Robot MOTOMAN HC10DTFP

Specifications

Type

Industrial Robot

Brand

Motoman

Model

HC10DTFP

Axes

6

Payload

10 kg

Reach

1379 mm

Repeatability

0.050 mm

Weight

58 kg

Speed at rated payload

1000 mm/s

IP rating

IP67

Mounting orientation

Floor, Wall, Ceiling, Inclined

Controller

YRC1000 or YRC1000micro

Power supply

1 kVA

Power consumption

1 kVA

Tool flange

ISO standard tool flange (with additional dowel hole)

Certifications

EN 60529 IP67, ISO Cleanroom Class 5, ISO 10218-1, ISO 13849-1 PLd, compliant with ISO/TS 15066

Cleanroom class

ISO Class 5

Safety functions

Power and Force Limiting (PFL), advanced pinch‐less geometry, automatic retraction from clamping, push-back, switchable hybrid operation between collaborative and full speed

Communication interfaces

Thru-arm utilities including Category 6 Ethernet, I/O cable, air lines; standard teach pendant; Smart Pendant; Ethernet TCP/IP; Profinet

Download MOTOMAN HC10DTFP digital twin

The Industrial Robot MOTOMAN HC10DTFP is a versatile 6-axis robot designed for collaborative applications, capable of handling payloads up to 10 kg with an impressive reach of 1379 mm. Featuring a repeatability of 0.050 mm and a maximum speed of 2000 mm/s, this robot is suitable for various mounting orientations including floor, wall, and ceiling. With an IP67 rating and compliance with ISO Cleanroom Class 5 standards, the MOTOMAN HC10DTFP ensures reliable operation in clean environments while offering advanced safety functions and multiple communication interfaces.

What are the technology applications of HC10DTFP?

MOTOMAN HC10DTFP is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN HC10DTFP:Assembly, Deburring, Pick and place, Polishing, Trimming. But we recommend to consult with your robot supplied or the manufacturer.
