Industrial Robot MOTOMAN MPX2600 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

MPX2600

Axes

Payload

15 kg

Reach

2000 mm

Repeatability

0.2 mm

Weight

485 kg

Maximum speed

2 m/s

Speed at rated payload

2 m/s

IP rating

Basic axes IP4X, Wrist axis IP67

Mounting orientation

Floor, Wall, Ceiling

Controller

DX200-FM

Power supply

3.0 kVA

Power consumption

3 kVA

Tool flange

Ø 70 mm hollow wrist arm diameter

Certifications

TIIS (Japan), FM (North America), ATEX (Europe), KCs (Korea), Taiwan

Safety functions

Safety-rated speed control; safety-rated soft axis and space limiting; safety-rated monitor stop (with Category 3 Performance Level d PLd)

Communication interfaces

EtherNet, EtherNet/IP, CC-Link, DeviceNet

The MOTOMAN MPX2600 is a highly capable industrial robot featuring six axes, designed for precision assembly and material handling applications. With a payload capacity of 15 kg and a reach of 2000 mm, this robust robot ensures exceptional performance with a repeatability of 0.2 mm. Supported by the advanced DX200-FM controller and equipped with multiple communication interfaces, including EtherNet/IP and DeviceNet, the MPX2600 is suitable for various mounting orientations—floor, wall, or ceiling—and is backed by comprehensive safety certifications.

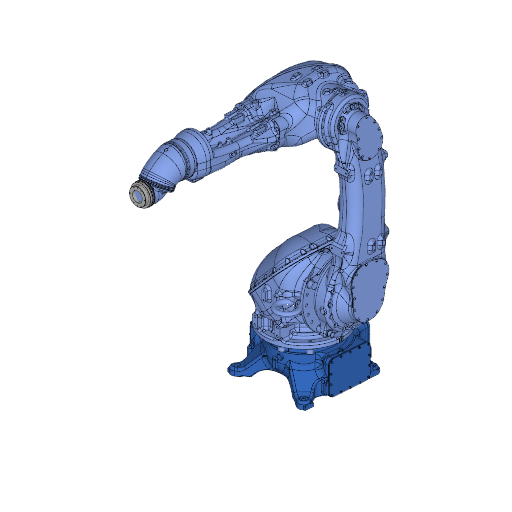

3D View

What are the technology applications of MPX2600?

MOTOMAN MPX2600 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN MPX2600: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MOTOMAN MPX2600 applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MOTOMAN MPX2600 or request a quote, please contact the manufacturer or an authorized local supplier.
