Industrial Robot STAUBLI TX2-60L Specs and Applications

Specifications

Type

Industrial Robot

Brand

Staubli

Model

TX2-60L

Axes

Payload

2.0 kg

Reach

920 mm

Repeatability

0.030 mm

Weight

53 kg

Maximum speed

11.1 m/s

Speed at rated payload

11.1 m/s

IP rating

IP65 (wrist) / IP67 option

Operating temperature

5 to 40 °C

Mounting orientation

Floor-mounted, Wall-mounted, Ceiling-mounted, 360° mounting possibility

Controller

CS9

Power supply

Single-phase 230 V / Three-phase 200-480 V

Power consumption

0.4 kW

Tool flange

MPS automatic tool changer, flange ISO 9409 (robot flange/attachment interface)

Certifications

Optional SIL3 / PL e safety category, MedX Ready version under ISO 13485:2016 QMS

Cleanroom class

ISO 14644-1 Class 2 (SCR version) - Class 4 (CR version)

Safety functions

Safe limited speed, Safe stop, Safe zone, Safe tool

Communication interfaces

EtherCAT, EtherNet/IP, PROFINET, SERCOS III, Powerlink, Modbus TCP/IP, OPC UA (optional)

The Industrial Robot STAUBLI TX2-60L is a versatile six-axis robotic solution designed for precision and efficiency in various applications. With a payload capacity of 2.0 kg and a reach of 920 mm, this robot offers exceptional repeatability of 0.030 mm and a maximum speed of 11.1 m/s, making it ideal for high-speed automation tasks. Its flexible mounting options, robust IP65/IP67 ratings, and compatibility with multiple communication interfaces ensure seamless integration into diverse operational environments, while achieving compliance with ISO 14644-1 Class 2 cleanroom standards.

3D View

What are the technology applications of TX2-60L?

STAUBLI TX2-60L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of STAUBLI TX2-60L: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

STAUBLI TX2-60L applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase STAUBLI TX2-60L or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Staubli

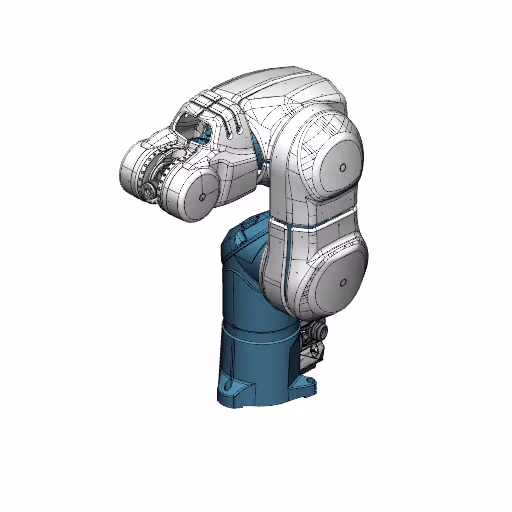

STAUBLI TX2 TOUCH 60 PRESERIAL
