Cobot DOOSAN A0912 Specs and Applications

Specifications

Type

Cobot

Brand

Doosan

Model

A0912

Axes

Payload

9 kg

Reach

1200 mm

Repeatability

0.050 mm

Weight

27 kg

Maximum speed

1000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP54

Operating temperature

-5 to 45 °C

Mounting orientation

Any Orientation

Controller

Doosan Controller, DART Platform & Teach Pendant (Option)

Power supply

DC 24V, Max. 3A

Power consumption

440 W

Tool flange

M8 8-pin connector, Phoenix type, supports Digital I/O (2 In / 2 Out) + RS-485, +24V supply, 3A max

Certifications

CE, ISO 10218-1, ISO/TS 15066, NRTL (U.S.), Functional Safety Certification

Safety functions

Safety-rated stop (STO, SS1, SS2), Safe Operating Stop (SOS), Joint Position Monitoring, Joint Speed Monitoring, TCP Position/Direction Monitoring, Reduced Speed Mode; meets ISO 13849-1 PL d, IEC 62061 SIL 2, IEC 61800-5-2 stop functions

Communication interfaces

Digital I/O, RS-485 (on flange), TCP/IP, USB, Modbus-RTU/Master, Modbus-TVP, EtherNet/IP, PROFINET

The Cobot DOOSAN A0912 is an advanced 6-axis industrial robot designed to handle a payload of up to 9 kg with an impressive reach of 1200 mm. With a repeatability of 0.050 mm and a maximum speed of 1000 mm/s, it is ideal for precision automation tasks across various industries. Equipped with safety features that comply with ISO standards and a versatile Doosan Controller, this cobot operates seamlessly in any orientation, making it a reliable choice for enhancing productivity in your automation processes.

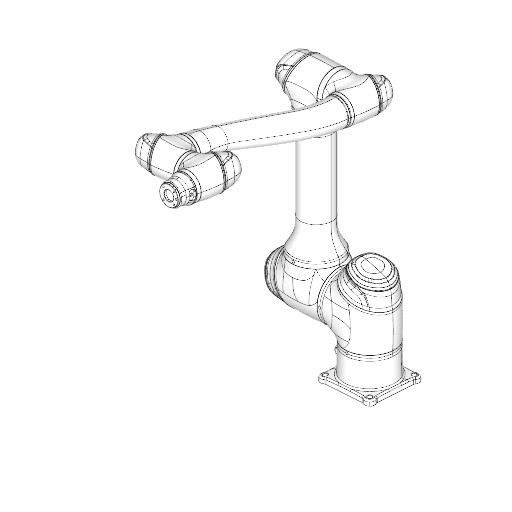

3D View

What are the technology applications of A0912?

DOOSAN A0912 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOOSAN A0912: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
