Industrial Robot KUKA KR160 R1570 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR160 R1570

Axes

Payload

160 kg

Reach

1573 mm

Repeatability

0.060 mm

Weight

677 kg

Maximum speed

220 °/s

Speed at rated payload

220 °/s

IP rating

IP65 (robot), IP65 inline wrist

Operating temperature

10 °C to 55 °C

Mounting orientation

Floor, Ceiling

Controller

KR C4; KR C5

Cleanroom class

ISO 14644-1 Class 5

Safety functions

Safety modules X11 and X13

The KUKA KR160 R1570 is a highly efficient industrial robot designed with 6 axes, capable of handling a maximum payload of 160 kg and offering a reach of 1573 mm. With a remarkable repeatability of 0.060 mm and operating across various environments from 10 °C to 55 °C, this robot is suitable for both floor and ceiling mounting. Equipped with the KR C4 or KR C5 controller and boasting an IP65 rating, the KUKA KR160 R1570 ensures reliable performance in demanding applications while adhering to ISO 14644-1 Class 5 cleanroom standards.

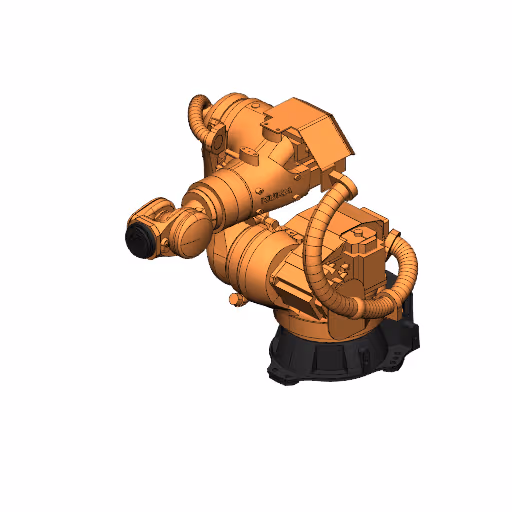

3D View

What are the technology applications of KR160 R1570?

KUKA KR160 R1570 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR160 R1570: Deburring, Machine Tending, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
