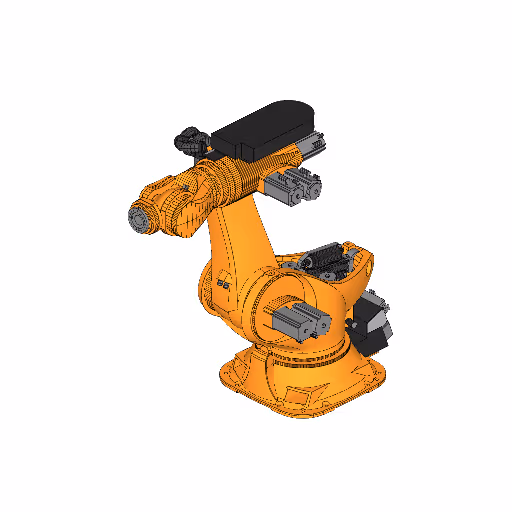

Industrial Robot KUKA KR 1000 titan Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 1000 titan

Axes

Payload

1000 kg

Reach

3202 mm

Repeatability

0.1 mm

Weight

4690 kg

Maximum speed

72 °/s

Speed at rated payload

58 °/s

IP rating

IP65 (robot), IP65/IP67 (wrist for Foundry variant)

Operating temperature

10 to 55 °C (operation), -40 to 60 °C (storage/transport)

Mounting orientation

Floor

Controller

KR C5 (also compatible with KR C4, KR C2 editions)

Power supply

400-480 VAC 3-phase

Tool flange

Hole circle Ø200 mm, Screw size M16, 16 fastening threads, Locating element 12 H7 (inner locating diameter Ø160 H7)

Certifications

EN ISO 10218-1; EN ISO 12100; EN ISO 13849-1; EN ISO 13849-2; EN ISO 13850; EN IEC 61000-6-2; EN IEC 61000-6-4

Safety functions

Emergency stop; safety‐related parts of control system in accordance with EN ISO 13849-1/-2; brake defect detection; overpressure protection in Foundry version; designed per safety standards EN ISO 10218-1, EN ISO 12100, EN ISO 13850

Communication interfaces

Gigabit Ethernet; data cable via HAN 3A connectors; motor cables via HAN BG24 (and rectangular connectors HAN size 24)

The KUKA KR 1000 titan is a high-performance industrial robot designed for heavy-duty applications, featuring six axes and a remarkable payload capacity of 1000 kg. With a reach of 3202 mm and a repeatability of 0.1 mm, this robust robot operates efficiently in demanding environments, supporting a maximum speed of 72 °/s and 58 °/s at rated payload. Ideal for various industrial tasks, the KR 1000 titan operates within a temperature range of 10 to 55 °C and complies with rigorous safety and communication standards, ensuring reliable performance and integration into automation systems.

3D View

What are the technology applications of KR 1000 titan?

KUKA KR 1000 titan is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 1000 titan: Assembly, Machine Tending, Multiaxis cutting, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
