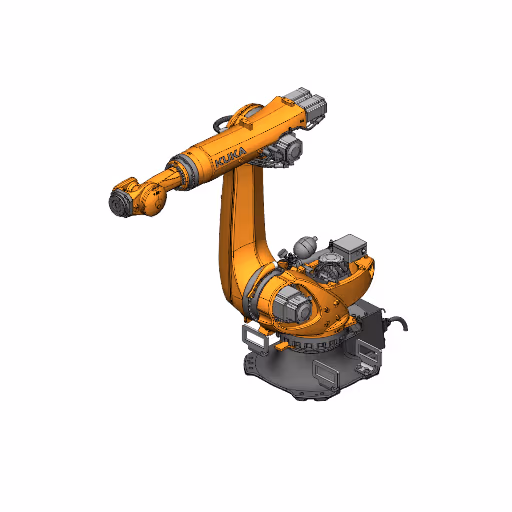

Industrial Robot KUKA KR 120 R2700-2 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 120 R2700-2

Axes

Payload

120 kg

Reach

2701 mm

Repeatability

0.050 mm

Weight

1069 kg

Maximum speed

260 deg/s

Speed at rated payload

260 deg/s

IP rating

IP65; Wrist: IP65 / IP67

Mounting orientation

Floor

Controller

KR C4 (also KR C5 in certain variants)

Tool flange

ZH210

Certifications

ESD requirements IEC61340-5-1; ANSI/ESD S20.20

The KUKA KR 120 R2700-2 is a high-performance industrial robot designed for precision automation applications. Featuring six axes, it offers a payload capacity of 120 kg and an impressive reach of 2701 mm with a repeatability of just 0.050 mm. With a robust design rated at IP65 and suitable for floor mounting, this model operates at a maximum speed of 260 deg/s, driven by the advanced KR C4 or KR C5 controller, and is compliant with ESD requirements, making it ideal for demanding environments.

3D View

What are the technology applications of KR 120 R2700-2?

KUKA KR 120 R2700-2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 120 R2700-2: Deburring, Machine Tending, Pick and place, Robot welding, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
