Industrial Robot KUKA KR 16 R1610 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 16 R1610

Axes

Payload

16 kg

Reach

1612 mm

Repeatability

0.040 mm

Weight

245 kg

Maximum speed

630 °/s

Speed at rated payload

630 °/s

IP rating

IP65 (body & robot hand), inline wrist also IP65

Operating temperature

5 °C to 45 °C

Mounting orientation

Floor, Ceiling, Wall, Desired angle

Controller

KR C4

Power supply

3×400 V, 50/60 Hz

Certifications

IEC 60529 (IP ratings), ISO 9283 (repeatability), IEC 61340-5-1; ANSI/ESD S20.20; CE marking

Cleanroom class

Class 5 (ISO 14644-1) at 40% override, Class 5 at 80% override

Safety functions

Integrated safety technology (SafetyControl, RobotControl, MotionControl etc.), supports safe operation features; emergency stop and networked safety via KR C4

Communication interfaces

PROFINET, PROFIBUS, Ethernet/IP, DeviceNet, standard field-bus/real-time Ethernet interfaces; I/O expansion; image processing support

The KUKA KR 16 R1610 is a highly versatile industrial robot designed for precision and efficiency with its six axes capable of handling a payload of 16 kg. With a reach of 1612 mm and a repeatability of 0.040 mm, this robot excels in various applications, while its robust IP65 rating ensures durability in demanding environments. Operating within a temperature range of 5 °C to 45 °C and equipped with advanced safety features, the KR 16 R1610 is well-suited for both cleanroom and general industrial operations, making it an ideal choice for automation tasks.

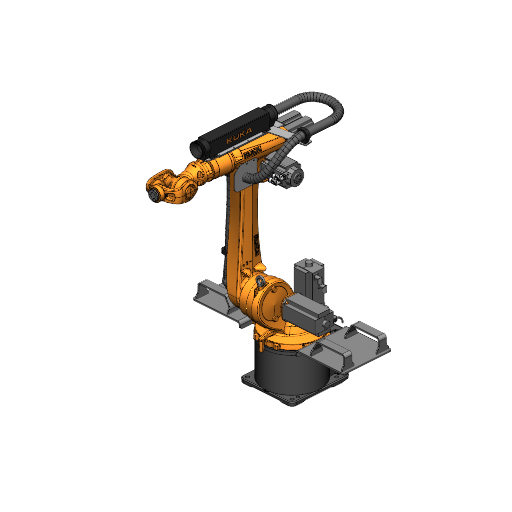

3D View

What are the technology applications of KR 16 R1610?

KUKA KR 16 R1610 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 16 R1610: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KUKA KR 16 R1610 applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KUKA KR 16 R1610 or request a quote, please contact the manufacturer or an authorized local supplier.
