Industrial Robot KUKA KR 160 R1570 nano (slim version) Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kuka

Model

KR 160 R1570 nano (slim version)

Axes

Payload

160 kg

Reach

1573 mm

Repeatability

0.060 mm

Weight

677 kg

Speed at rated payload

720 °/s

IP rating

IP65 (robot), IP65 wrist

Operating temperature

10 to 55 °C

Mounting orientation

Floor, Ceiling

Controller

KR C4 or KR C5 (including KR C5 micro)

Power supply

AC 1× 200-240 V, 50/60 Hz

Power consumption

1.3 kVA

Certifications

UL, CSA, ISO 10218-1, ISO 13849-1

Safety functions

ISO 10218-1, ISO 13849-1 Cat. 3 / Performance Level d

Communication interfaces

Ethernet, EtherCAT, PROFINET, PROFIsafe, Ethernet/IP (via option modules), digital I/Os

The KUKA KR 160 R1570 nano is a high-performance industrial robot designed for versatile automation tasks in various environments. With six axes, it offers a payload capacity of 160 kg and an impressive reach of 1573 mm, providing exceptional flexibility and precision with a repeatability of 0.060 mm. Operating within a temperature range of 10 to 55 °C and featuring IP65 protection, this slim version robot can be mounted on the floor or ceiling, making it ideal for a wide range of applications while ensuring reliable operation and safety compliance.

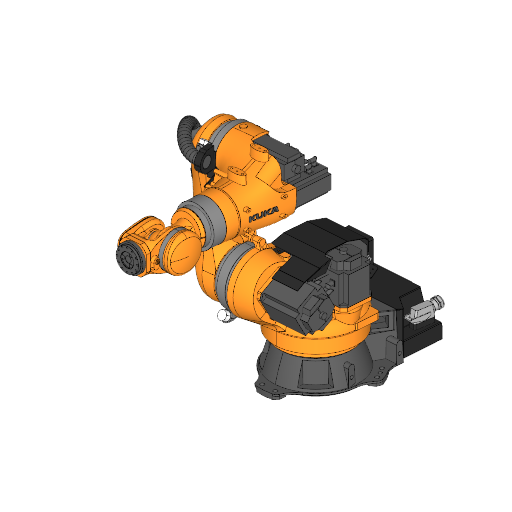

3D View

What are the technology applications of KR 160 R1570 nano (slim version)?

KUKA KR 160 R1570 nano (slim version) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KUKA KR 160 R1570 nano (slim version): Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
