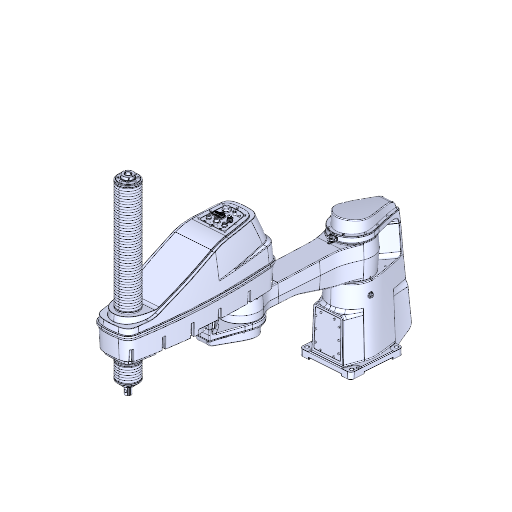

KUKA KR 20 R1000 Z390 CR
Specifications
Type
SCARA
Brand
Kuka
Model
KR 20 R1000 Z390 CR
Axes
4
Payload
20 kg
Reach
1000 mm
Repeatability
0.025 mm
Weight
61 kg
IP rating
IP54
Operating temperature
5 °C to 40 °C
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240V single-phase, 50/60Hz
Power consumption
1.3 kVA
Certifications
CE, ISO 14644-1, ESD protected
Cleanroom class
ISO 5
The SCARA KUKA KR 20 R1000 Z390 CR is a high-performance industrial robot designed for precision automation tasks. With four axes and a payload capacity of 20 kg, this robot offers a reach of 1000 mm and a repeatability of 0.025 mm, making it ideal for applications requiring high accuracy. Operable within an operating temperature range of 5 °C to 40 °C and featuring an IP54 rating, this floor-mounted robot is certified to ISO 5 cleanroom standards and is compatible with the KR C5 micro controller for optimal performance.
