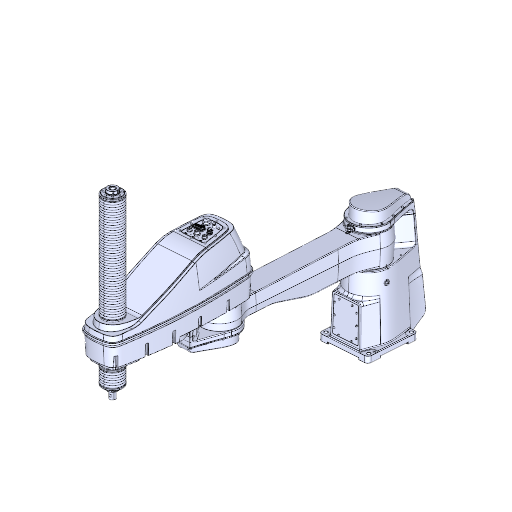

KUKA KR 20 R1200 Z390 CR
Specifications
Type
SCARA
Brand
Kuka
Model
KR 20 R1200 Z390 CR
Axes
4
Payload
20 kg
Reach
1200 mm
Repeatability
0.02 mm
Weight
63 kg
IP rating
IP54
Operating temperature
-5 to 45 °C
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 50-60 Hz
Power consumption
1.3 kVA
Certifications
ISO 10218-1, EN ISO 13849-1 Performance Level d, CE
Cleanroom class
ISO Class 5
Communication interfaces
Ethernet, EtherCAT, Digital IO (16 inputs / 16 outputs), Safe I/O (EMERGENCY STOP, operator safety, enabling devices), USB, Display port
The SCARA KUKA KR 20 R1200 Z390 CR is a highly efficient industrial automation component designed for precision handling and assembly tasks. With four axes, a payload capacity of 20 kg, and a reach of 1200 mm, this robot ensures exceptional repeatability of 0.02 mm. Equipped with a KR C5 micro controller and compatible with various communication interfaces, this model operates effectively within its -5 to 45 °C temperature range and meets rigorous standards such as ISO Class 5 cleanliness and CE certification.
