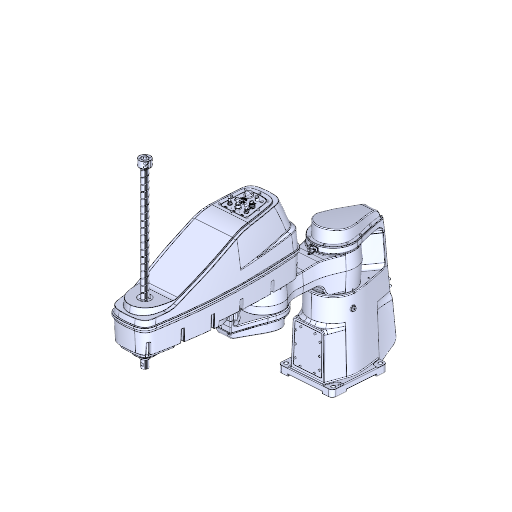

KUKA KR 20 R800 Z450
Specifications
Type
SCARA
Brand
Kuka
Model
KR 20 R800 Z450
Axes
4
Payload
20 kg
Reach
800 mm
Repeatability
0.04 mm
Weight
125 kg
Maximum speed
1400 °/s
Speed at rated payload
590 °/s
IP rating
IP20
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240V, 1-phase, 50/60Hz
Certifications
CE
Cleanroom class
Standard (non-cleanroom version)
Safety functions
Category 3 and Performance Level d in accordance with EN ISO 13849-1; features include operator safety, emergency stop (on smartPAD and external), enabling device, velocity monitoring in T1
Communication interfaces
Ethernet, EtherCAT, PROFINET; supports safety-interfaces (PROFIsafe, CIP Safety upcoming)
The SCARA KUKA KR 20 R800 Z450 is a high-performance industrial robot designed for a variety of automation tasks, featuring four axes with a remarkable payload capacity of up to 20 kg. With a reach of 800 mm and a repeatability of 0.04 mm, this robot offers precision and efficiency in its operations. Equipped with a KR C5 micro controller, it operates on a power supply of AC 200-240V and supports advanced communication interfaces such as Ethernet and PROFINET, making it an ideal solution for modern manufacturing environments.
