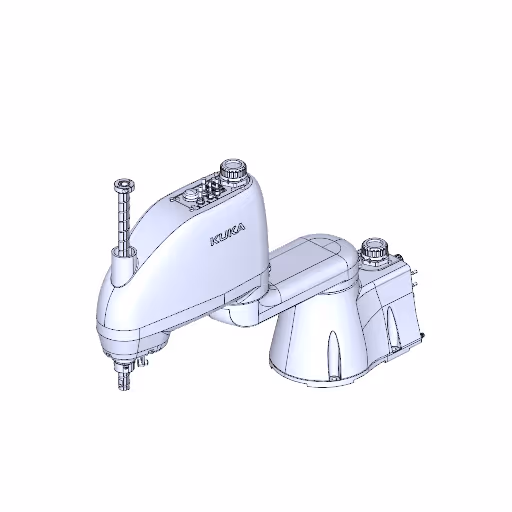

KUKA KR 6 R500 Z200
Specifications
Type
SCARA
Brand
Kuka
Model
KR 6 R500 Z200
Axes
4
Payload
6 kg
Reach
500 mm
Repeatability
0.02 mm
Weight
20 kg
Maximum speed
2000 °/s
Speed at rated payload
1.1 m/s
IP rating
IP20
Operating temperature
5 to 40 °C
Mounting orientation
Floor
Controller
KR C5 micro
Power supply
AC 200-240 V, 50/60 Hz
Power consumption
1300 VA
Certifications
CE, ISO 10218-1
Cleanroom class
ISO 5
Safety functions
Emergency stop, operator protection, safe inputs and outputs (Category 3 / Performance Level d)
Communication interfaces
Ethernet, EtherCAT, digital I/O, Fast Measurement inputs
The SCARA KUKA KR 6 R500 Z200 is a robust industrial automation component designed to enhance precision and efficiency in various applications. With a payload capacity of 6 kg and a reach of 500 mm, this 4-axis robot offers exceptional repeatability of 0.02 mm and can operate at a maximum speed of 2000 °/s. The unit, weighing 20 kg and compliant with ISO 5 cleanroom standards, is equipped with a KR C5 micro controller and features multiple communication interfaces, making it ideal for demanding production environments.
